Mode Select Switch (MSS): Notes

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

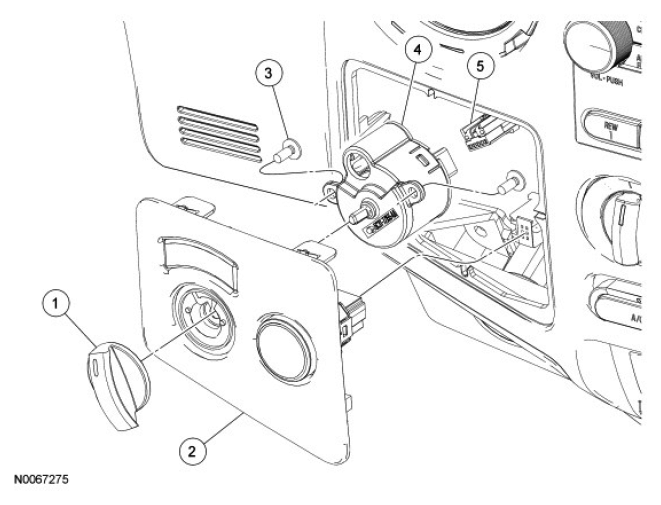

Fig 1: Identifying Mode Select Switch (MSS) Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	11666	Mode Select Switch (MSS) knob
2	047A04	Bezel
3	72155	Screws
4	-	MSS
5	-	Electrical connector-to- MSS
