Removal and Installation

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Open and lower the glove compartment.
  3. Disconnect the connectors from the 4X4 control module.

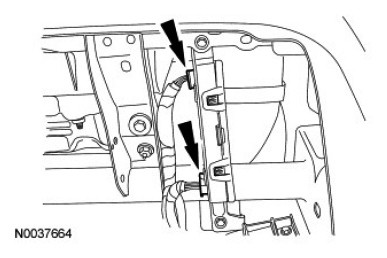

    Fig 1: Locating 4X4 Control Module Connectors
    G06763046Courtesy of FORD MOTOR CO.
  4. Remove 2 nuts and the 4X4 control module.

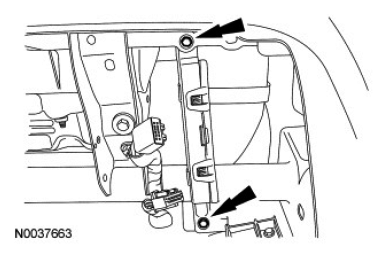

    Fig 2: Locating 4X4 Control Module Nuts
    G06763047Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
