Ignition Switch

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Tilt column shown in illustration, fixed column similar.

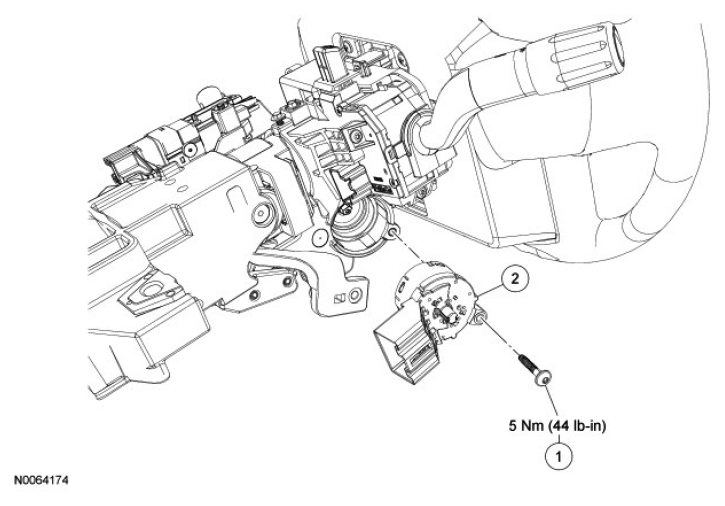

Fig 1: Ignition Switch And Screw With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	N802141	Ignition switch screw
2	11572	Ignition switch

All columns

Depower the Supplemental Restraint System (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
Vehicles with fixed column
Remove the steering column shroud. For additional information, refer to STEERING COLUMN .
Vehicles with tilt column
Remove the steering column. For additional information, refer to STEERING COLUMN .
- Place the steering column on a clean workbench.
Position the column in the full upward position.
Using suitable tools, push the first roll pin out of the fixed shoe.

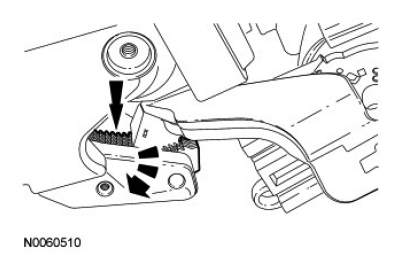

Fig 2: Locating First Roll Pin
Courtesy of FORD MOTOR CO.
Pivoting on the second roll pin, tilt the fixed shoe downward.

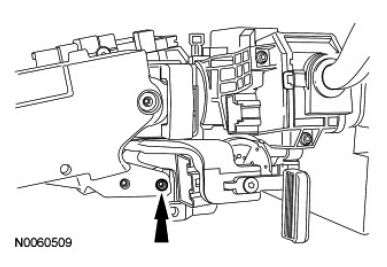

Fig 3: Locating Pivoting On Second Roll Pin
Courtesy of FORD MOTOR CO.
Position the tilt lever to rest against the steering column housing.

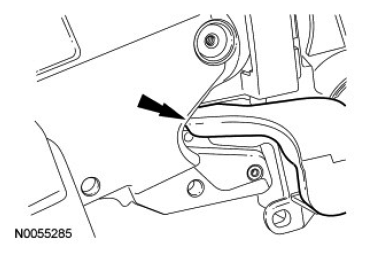

Fig 4: Locating Tilt Lever To Steering Column Housing
Courtesy of FORD MOTOR CO.

All columns
Remove the ignition switch screw and the ignition switch.
- To install, tighten to 5 Nm (44 lb-in).
NOTE: Make sure the electrical wiring harness is routed correctly and secured to the steering column or damage to the wires and/or connectors may occur.

To install, reverse the removal procedure.
Repower the SRS . For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
