Pinpoint Test E: DTC B2A20 - Ignition Stuck In Start

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multi-meter probes.
  1. E1 CHECK THE IGNITION SWITCH MECHANICAL FUNCTION
    • Inspect the ignition switch for mechanical function. Refer to the Component Test IGNITION SWITCH - MECHANICAL .
    • Is the ignition switch OK?
    • Yes:  GO to E2  .
    • No:  INSTALL a new ignition switch. REFER to IGNITION SWITCH . CLEAR the DTCs. REPEAT the self-test.
  2. E2 CHECK THE IGNITION SWITCH FOR A SHORT
    • Yes:  GO to E3  .
    • No:  INSTALL a new ignition switch. REFER to IGNITION SWITCH . CLEAR the DTCs. REPEAT the self-test.
  3. E3 CHECK CIRCUIT CBP28 (GY/VT) FOR A SHORT TO VOLTAGE
    • Connect: Ignition Switch C250.
    • Disconnect: SJB  Fuse 28 (5A).
    • Ignition ON.
    • Measure the voltage between SJB  fuse 28 (5A), output side and ground.

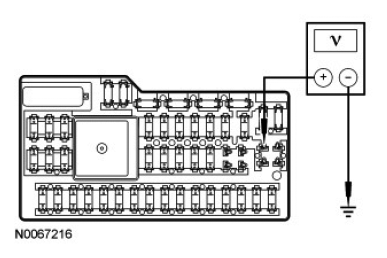

      Fig 1: Measuring Voltage Between SJB Fuse 28 (5A), Output Side And Ground
      G06762859Courtesy of FORD MOTOR CO.
    • Is any voltage present?
    • Yes:  GO to E4  .
    • No:  GO to E5  .
  4. E4 ISOLATE THE ACM
    • Ignition OFF.
    • Disconnect: Audio Control Module (ACM) C240A.
    • Ignition ON.
    • Measure the voltage between SJB  fuse 28 (5A), output side and ground.
      Fig 2: Measuring Voltage Between SJB Fuse 28 (5A), Output Side And Ground
      G06762859Courtesy of FORD MOTOR CO.
    • Is any voltage present?
    • Yes:  REPAIR circuit CBP28 (GY/VT). CLEAR the DTC. REPEAT the self-test.
    • No:  INSTALL a new ACM  . REFER to INFORMATION AND ENTERTAINMENT SYSTEMS . CLEAR the DTCs. REPEAT the self-test.
  5. E5 CHECK CIRCUITS CDC35 (BU/WH) AND CDC38 (WH/VT) FOR A SHORT TO VOLTAGE
    • Ignition OFF.
    • Disconnect: PCM C1232B (diesel engine).
    • Disconnect: PCM C175T (gasoline engine).
    • Disconnect: Starter Relay.
    • Disconnect: OTIS  Diode.
    • Ignition ON.
    • Measure the voltage between SJB  fuse 28 (5A), input side and ground.
      Fig 3: Measuring Voltage Between SJB Fuse 28 (5A), Input Side And Ground
      G06500862Courtesy of FORD MOTOR CO.
    • Is any voltage present?
    • Yes:  REPAIR circuit CDC35 (BU/WH) and/or CDC38 (WH/VT). CLEAR the DTCs. REPEAT the self-test.
    • No:  GO to E6  .
  6. E6 ISOLATE THE PCM
    • Connect: PCM C1232B (diesel with OTIS  ).
    • Connect: PCM C175T (gasoline engine).
    • Measure the voltage between SJB  fuse 28 (5A), input side and ground.
      Fig 4: Measuring Voltage Between SJB Fuse 28 (5A), Input Side And Ground
      G06500862Courtesy of FORD MOTOR CO.
    • Is any voltage present?
  7. E7 ISOLATE THE STARTER RELAY
    • Connect: Starter Relay.
    • Measure the voltage between SJB  fuse 28 (5A), input side and ground.
      Fig 5: Measuring Voltage Between SJB Fuse 28 (5A), Input Side And Ground
      G06500862Courtesy of FORD MOTOR CO.
    • Is any voltage present?
    • Yes:  INSTALL a new starter relay. CLEAR the DTCs. REPEAT the self-test.
    • No:  GO to E8  .
  8. E8 CHECK THE OTIS DIODE FOR A SHORT OR AN OPEN
    • Check the diode.
    • Is the diode shorted or open?
    • Yes:  INSTALL a new OTIS  diode. CLEAR the DTCs. REPEAT the self-test.
    • No:  GO to E9  .
  9. E9 CHECK THE SJB CONNECTORS
    • Disconnect: SJB  C2280E.
    • Check SJB  connectors C2280B and C2280E for:
      • corrosion.
      • pushed-out pins.
      • spread terminals.
    • Connect: SJB  C2280B.
    • Connect: SJB  C2280E.
    • Make sure the connectors are seated correctly, then operate the system and verify the concern is still present.
    • Is the concern still present?
    • Yes:  INSTALL a new SJB  . REFER to MULTIFUNCTION ELECTRONIC MODULES . CLEAR the DTCs. REPEAT the self-test.
    • No:  The system is operating correctly at this time. Concern may have been caused by a loose or corroded connector.
