Transmission Support Crossmember: Installation

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

If required, install a new transmission insulator and retainer stud.
- Tighten to 75 Nm (55 lb-ft).
Position the crossmember to the transmission insulator and retainer and loosely install the transmission insulator-to-crossmember nut.

Fig 1: Locating Transmission Insulator And Nut
Courtesy of FORD MOTOR CO.
Install the LH support crossmember-to-frame bolts.
- Tighten to 81 Nm (60 lb-ft).

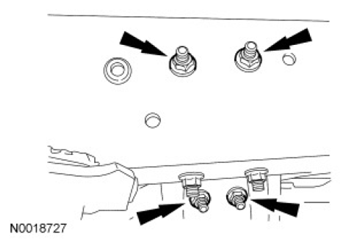

  Fig 2: Locating Crossmember Bolts
  Courtesy of FORD MOTOR CO.
Install the RH support crossmember-to-frame bolts.
- Tighten to 81 Nm (60 lb-ft).

  Fig 3: Locating RH Crossmember Bolts And Nuts
  Courtesy of FORD MOTOR CO.
Install the bracket and loosely install the bolts.
1. Install the crossmember-to-frame bracket.
2. Loosely install the bolts.

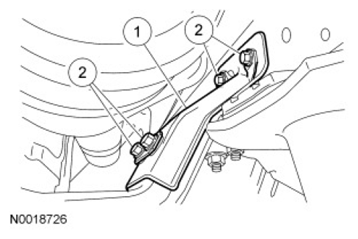

  Fig 4: Identifying Bracket And Bolts
  Courtesy of FORD MOTOR CO.
Tighten the RH support crossmember-to-frame bolts.
- Tighten to 81 Nm (60 lb-ft).

  Fig 5: Locating RH Support Crossmember-To-Frame Bolts
  Courtesy of FORD MOTOR CO.
Tighten the insulator-to-crossmember nuts.
- Tighten to 115 Nm (85 lb-ft).

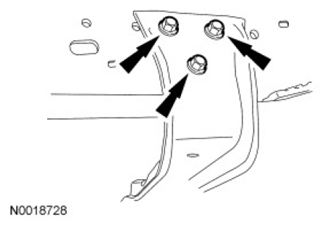

  Fig 6: Locating Rear Transmission Insulator And Retainer Nuts
  Courtesy of FORD MOTOR CO.
Connect the wire harness to the rear of the crossmember.

Fig 7: Locating Wire Harness At Rear Of Crossmember
Courtesy of FORD MOTOR CO.
