Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Transmissions with a fixed flange

Install the OSS sensor.
1. Lubricate the O-ring with transmission fluid and install the OSS sensor.
2. Install the bolt.
  - Tighten to 9 Nm (80 lb-in).

    Fig 1: Identifying O-ring With Transmission Fluid Shaft Flange Bolt
    Courtesy of FORD MOTOR CO.
Transmissions without a fixed flange
Install the OSS sensor.
1. Lubricate the O-ring with transmission fluid and install the OSS sensor.
2. Install the bolt.
  - Tighten to 9 Nm (80 lb-in).

    Fig 2: Identifying O-Ring With Transmission Fluid And OSS Sensor
    Courtesy of FORD MOTOR CO.
All vehicles
Connect the OSS sensor connector.

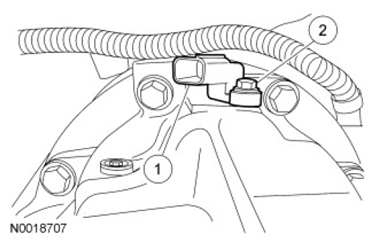

Fig 3: Locating Output Shaft Speed (OSS) Sensor Connector
Courtesy of FORD MOTOR CO.
