Section 2471 (Engine Mechanical - 6.4L 99R Diesel -- F250-F550 Super Duty)
>>
In-Vehicle Repair
>>
Rocker Arm
>>
LH Side
LH Side
WARNING:
This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

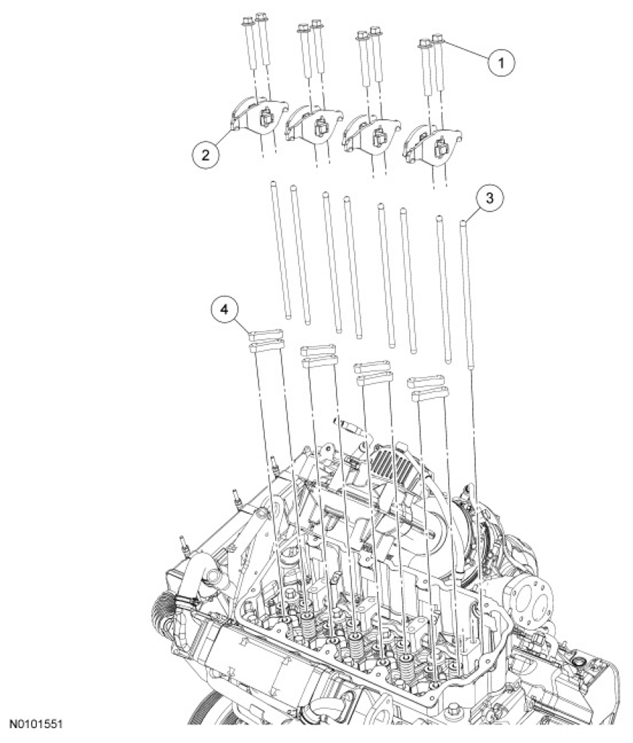

Fig 1: Identifying Rocker Arm - LH Side
Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART
Item
Part Number
Description
1
W302458
Rocker arm assembly bolt (8 required)
2
6564
Rocker arm assembly (4 required)
3
6565
Push rod (8 required)
4
6564
Valve bridge (8 required)
