Oil Pressure Regulator: Material
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 15W-40 Super Duty Diesel Motor Oil XO-15W40-QSD (US); CXO-15W40-LSD12 (Canada); or equivalent |
WSS-M2C171-E |

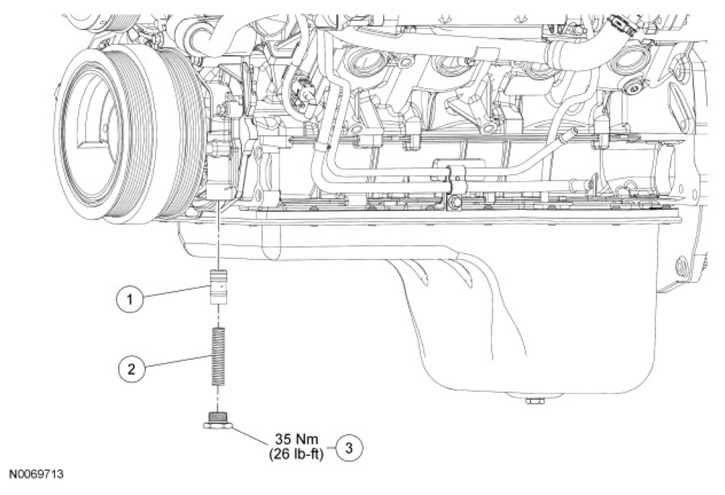

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Oil pressure regulator valve (part of 6616) |
| 2 | - | Oil pressure regulator valve spring (part of 6616) |
| 3 | W302646 | Oil pressure regulator plug |
