Oil Pan - Upper: Removal

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Remove the lower oil pan. For additional information, refer to OIL PAN - LOWER, PARTIAL BODY LIFT  or OIL PAN - LOWER, BODY ON .

    Partial body lift

  2. Remove the oil level indicator. Remove the retaining nut for the oil level indicator tube.

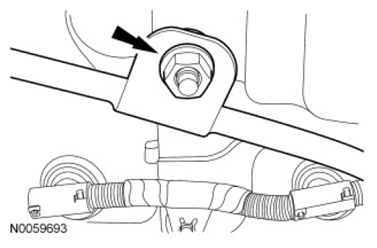

    Fig 1: Locating Oil Level Indicator Tube Retaining Nut
    G06774432Courtesy of FORD MOTOR CO.

    Body on

  3. Remove the oil level indicator.

    All vehicles

  4. Remove the bolt. Remove the oil level indicator tube and position it aside.
    • Remove and discard the O-ring seal.
      Fig 2: Locating Oil Level Indicator Tube Bolt
      G06774433Courtesy of FORD MOTOR CO.
  5. Remove the bolt for the fuel tube retainer.
  6. Remove the 9 bolts and the upper oil pan.
    • Remove and discard the press-in-place gasket. Clean and inspect the sealing surfaces.
