Oil Pan - Upper: Material
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 15W-40 Super Duty Diesel Motor Oil XO-15W40-QSD (US); CXO-15W40-LSD12 (Canada); or equivalent |
WSS-M2C171-E |

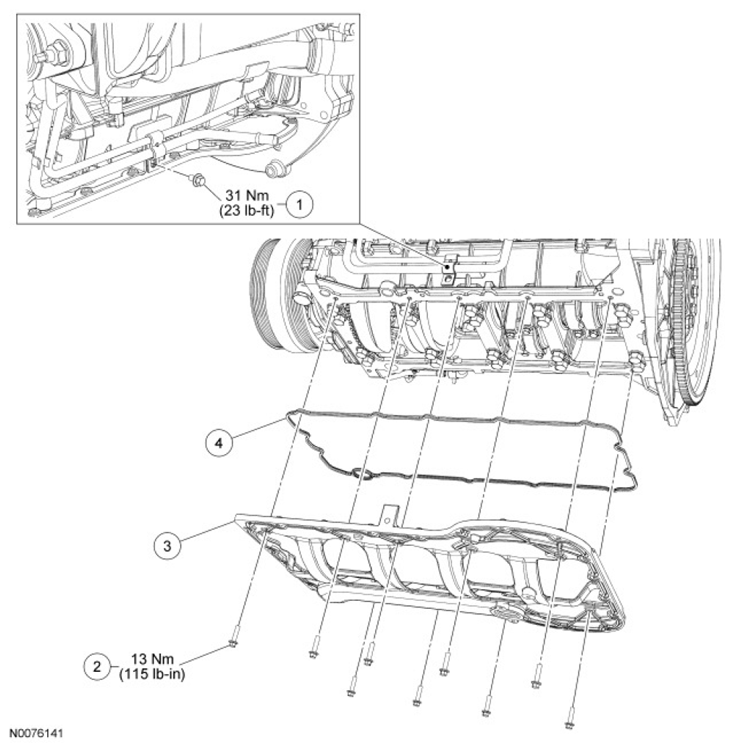

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W300016 | Fuel tube retainer bolt |
| 2 | W300014 | Upper oil pan bolt (9 required) |
| 3 | 6K883 | Upper oil pan |
| 4 | 6710 | Upper oil pan gasket |
