Oil Level Indicator and Tube: Notes
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

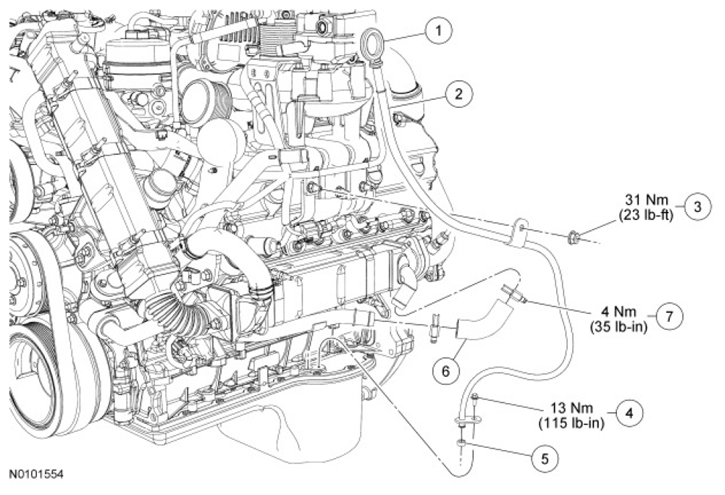

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6750 | Oil level indicator |
| 2 | 6754 | Oil level indicator tube assembly |
| 3 | W301253 | Oil level indicator tube nut |
| 4 | W300009 | Oil level indicator tube bolt |
| 5 | 6753 | O-ring seal |
| 6 | - | EGR cooler supply hose (part of 9F468) |
| 7 | 8287 | EGR cooler supply hose clamp (2 required) |
