Oil Cooler Assembly

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

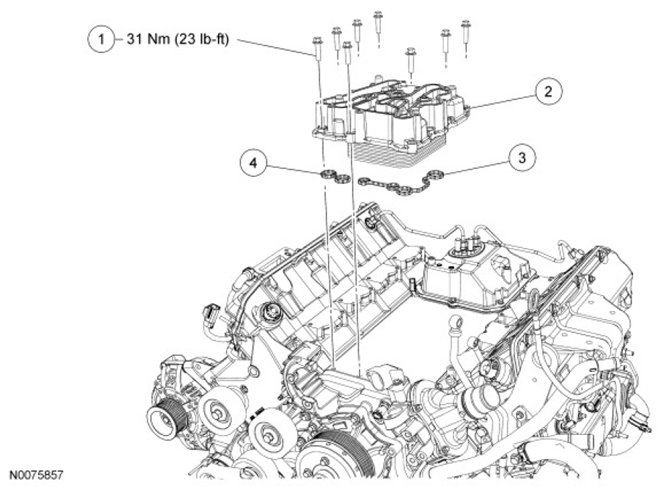

Fig 1: Oil Cooler Assembly With Torque Specifications
G06774444Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 W300006 Oil cooler cover bolt (8 required)
2 6A642 Oil cooler cover assembly
3 6619 Oil cooler cover gasket (oil)
4 6619 Oil cooler cover gasket (coolant)
