Oil Cooler Assembly
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

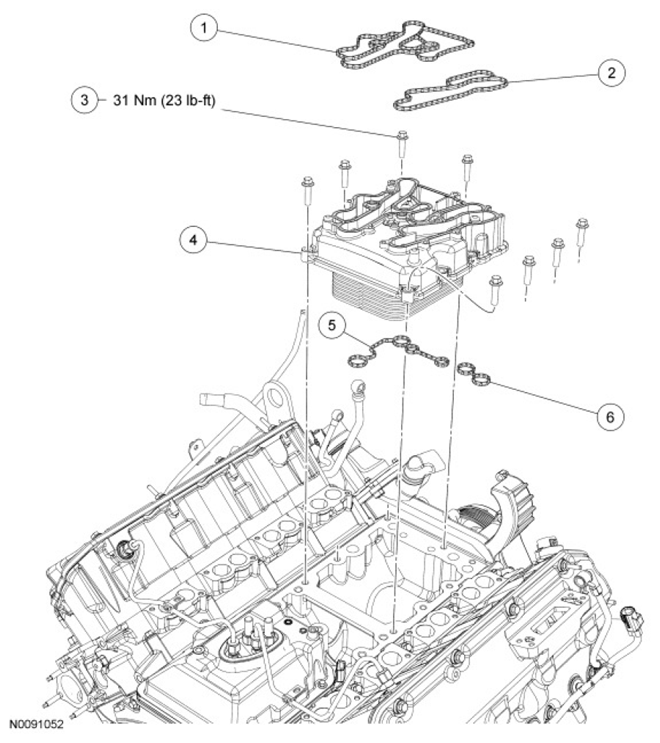

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6619 | Oil filter base-to-oil cooler cover gasket (oil) |
| 2 | 6619 | Oil filter base-to-oil cooler cover gasket (coolant) |
| 3 | W300006 | Oil cooler cover bolt (8 required) |
| 4 | 6A642 | Oil cooler cover assembly |
| 5 | 6619 | Oil cooler cover gasket (oil) |
| 6 | 6619 | Oil cooler cover gasket (coolant) |
