Intake Throttle Adapter: Notes

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

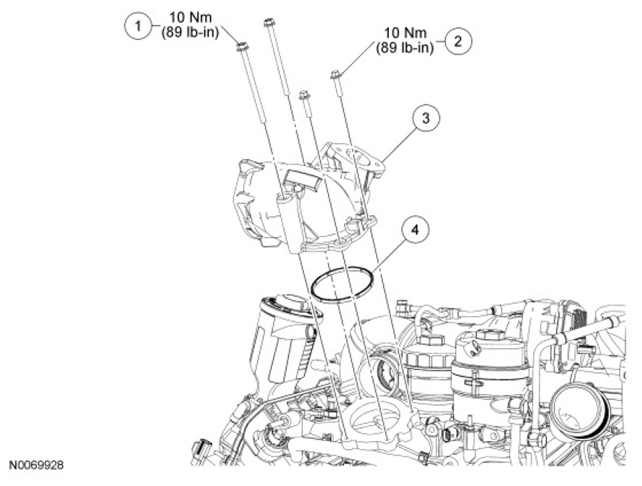

Fig 1: Intake Throttle Adapter With Torque Specifications

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	W302544	Bolt (2 required)
2	W300014	Bolt (2 required)
3	9E461	Intake throttle adapter
4	9F949	Gasket
