Special Tool(s)
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS CHART
| Caps, Fuel System 310-158 |
|
| Wrench, Fan Clutch Nut 303-214 (T83T-6312-B) |
|
| Wrench, Fan Hub Nut 303-774 |

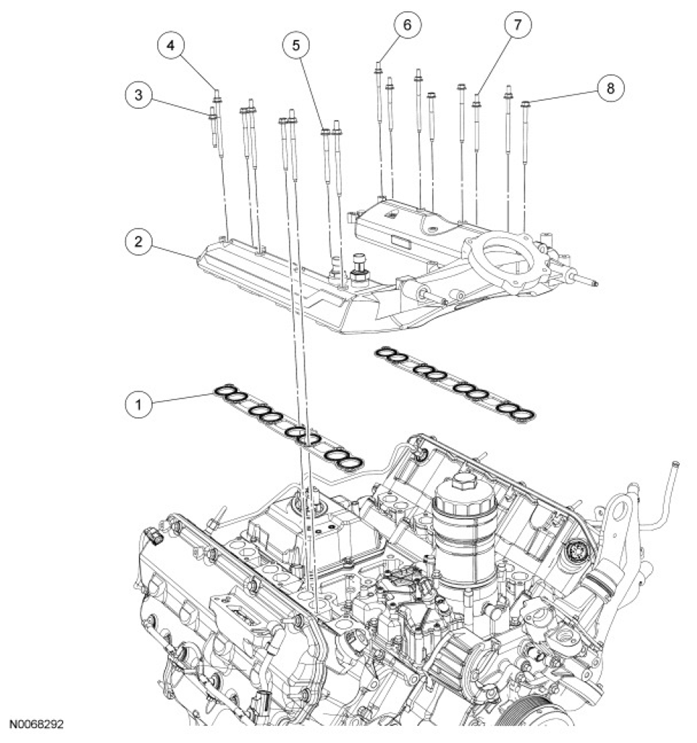

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9439 | Intake manifold gasket (2 required) |
| 2 | 9424 | Intake manifold |
| 3 | W302483 | Intake manifold stud bolt |
| 4 | W302487 | Ground stud bolt |
| 5 | W302485 | Intake manifold bolt (4 required) |
| 6 | W302488 | Intake manifold stud bolt (6 required) |
| 7 | W302484 | Intake manifold stud bolt (2 required) |
| 8 | W302486 | Intake manifold bolt (2 required) |
