In-Vehicle Repair: Flywheel: Installation

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flywheel, reinforcement ring and 10 new bolts. Tighten in 2 stages, in the sequence shown in the illustration.
    • Stage 1: Tighten to 5 Nm (44 lb-in).
    • Stage 2: Tighten to 94 Nm (69 lb-ft).

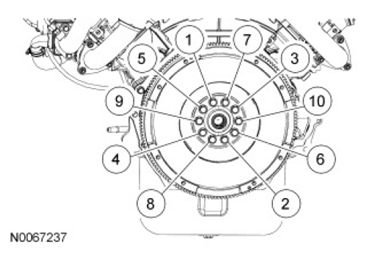

      Fig 1: Identifying Flywheel Bolts Tightening Sequence
      G06774280Courtesy of FORD MOTOR CO.
  2. Install the clutch disc and pressure plate. For additional information, refer to CLUTCH .
