LH Exhaust Manifold
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

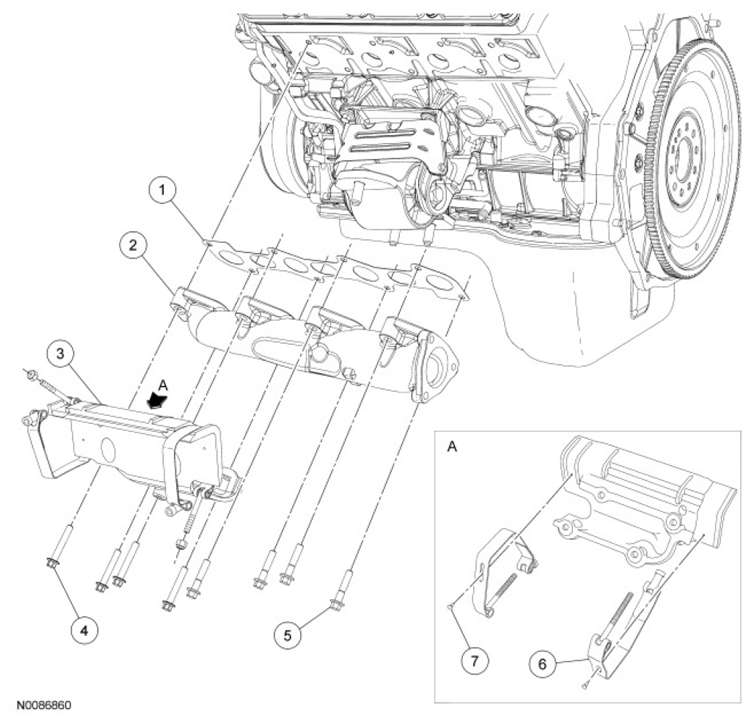

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9448 | Exhaust manifold gasket |
| 2 | 9430 | Exhaust manifold |
| 3 | 9F465 | Horizontal EGR cooler bracket |
| 4 | W302550 | Horizontal EGR cooler bracket bolt (4 required) |
| 5 | W302675 | Exhaust manifold bolt (4 required) |
| 6 | 8287 | Clamp (2 required) |
| 7 | W302549 | Pin (2 required) |
