EGR Cooler
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

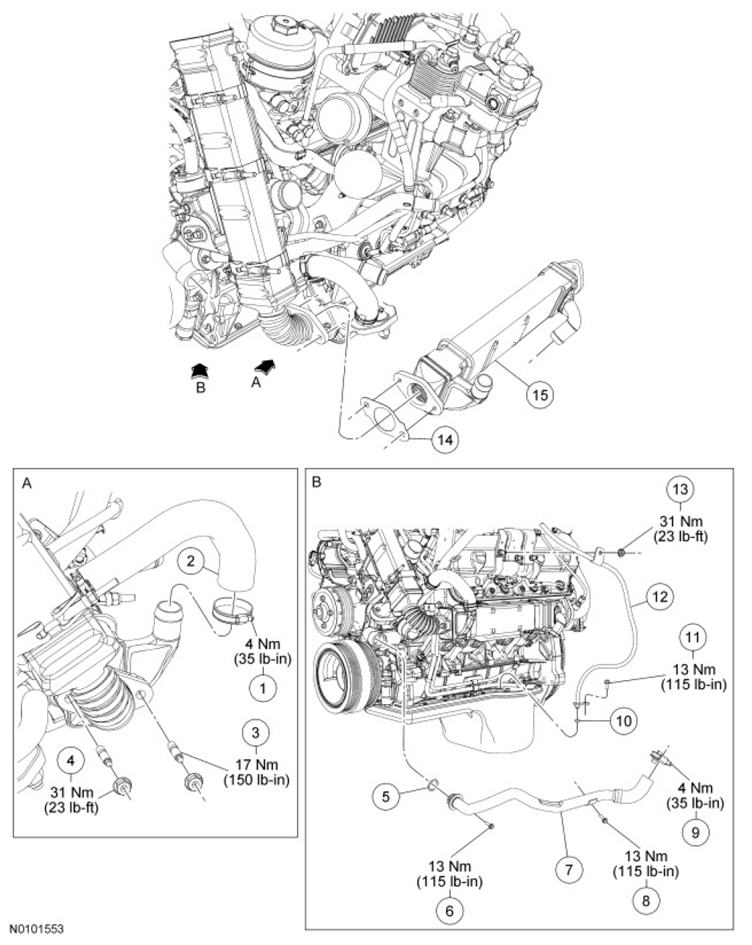

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 8287 | EGR cooler coolant outlet hose clamp |
| 2 | 9F469 | EGR cooler coolant outlet hose |
| 3 | W302633 | EGR cooler outlet stud (2 required) |
| 4 | W300050 | Horizontal EGR cooler outlet nut (2 required) |
| 5 | W301924 | EGR coolant supply tube assembly O-ring seal |
| 6 | W300002 | EGR coolant supply tube bolt |
| 7 | 9F469 | EGR coolant supply tube assembly |
| 8 | W300009 | EGR coolant supply tube bolt |
| 9 | 8287 | EGR coolant supply tube clamp |
| 10 | 6753 | Oil level indicator tube O-ring seal |
| 11 | W300009 | Oil level indicator tube bolt |
| 12 | 6754 | Oil level indicator tube |
| 13 | W300050 | Oil level indicator tube nut |
| 14 | 9H454 | Horizontal EGR cooler outlet gasket |
| 15 | 9F464 | Horizontal EGR cooler |
