Glow Plug Module Heat Shield

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

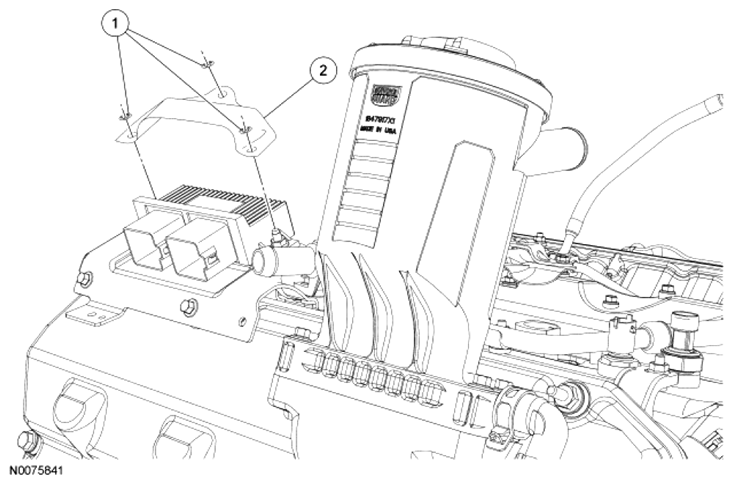

Fig 1: Identifying Glow Plug Module Heat Shield
G06777902Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 W302674 Glow plug module heat shield pushnuts (3 required)
2 12A345 Glow plug module heat shield
