High-Pressure Fuel Injection Pump Heat Shields
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

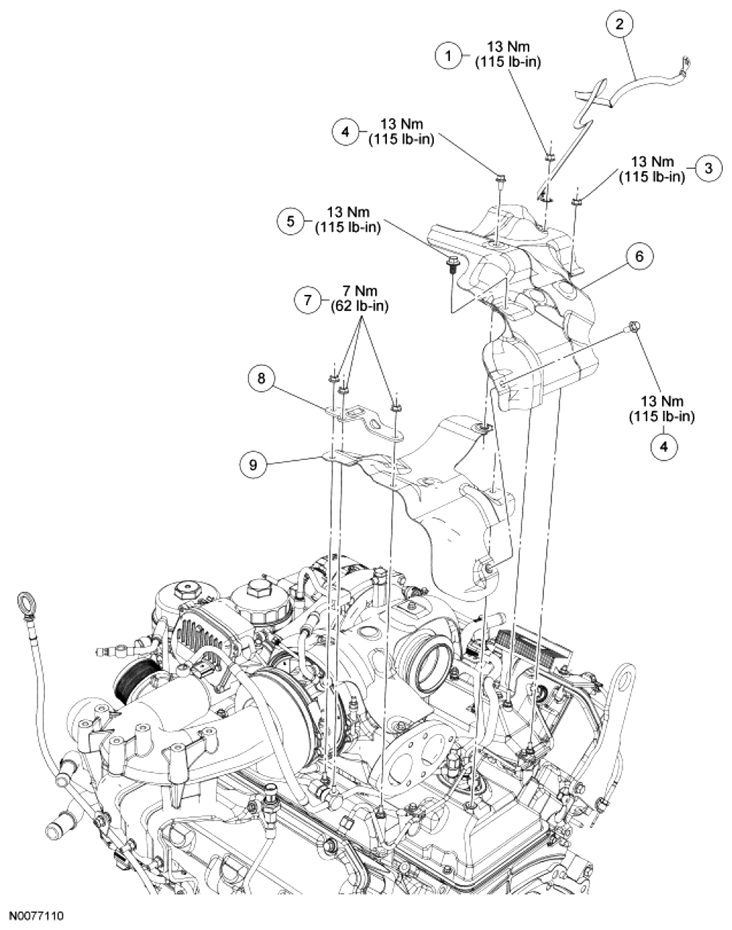

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W705790 | Engine-to-body ground wire nut |
| 2 | 19A095 | Engine-to-body ground wire |
| 3 | W300049 | RH high-pressure fuel injection pump heat shield nut |
| 4 | W301401 | RH high-pressure fuel injection pump heat shield bolts (2 required) |
| 5 | - | RH high-pressure fuel injection pump heat shield bolt |
| 6 | 9G478 | RH high-pressure fuel injection pump heat shield |
| 7 | W300049 | LH high-pressure fuel injection pump heat shield nuts (3 required) |
| 8 | 9180 | Fuel tube bracket |
| 9 | 9G478 | LH high-pressure fuel injection pump heat shield |
