High-Pressure Fuel Injection Pump Cover
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

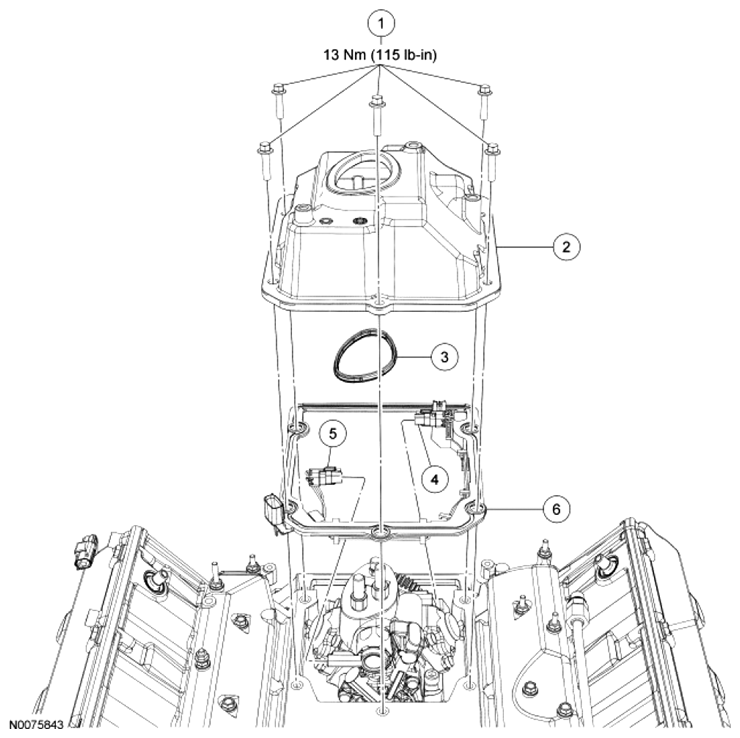

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W300014 | High-pressure fuel injection pump cover bolts (5 required) |
| 2 | 9A413 | High-pressure fuel injection pump cover |
| 3 | 6619 | High-pressure fuel injection pump cover press-in-place gasket |
| 4 | - | Volume control valve electrical connector (part of 6619) |
| 5 | - | Pressure control valve electrical connector (part of 6619) |
| 6 | 6619 | High-pressure fuel injection pump cover gasket |
