Fuel Rail Supply Tubes
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

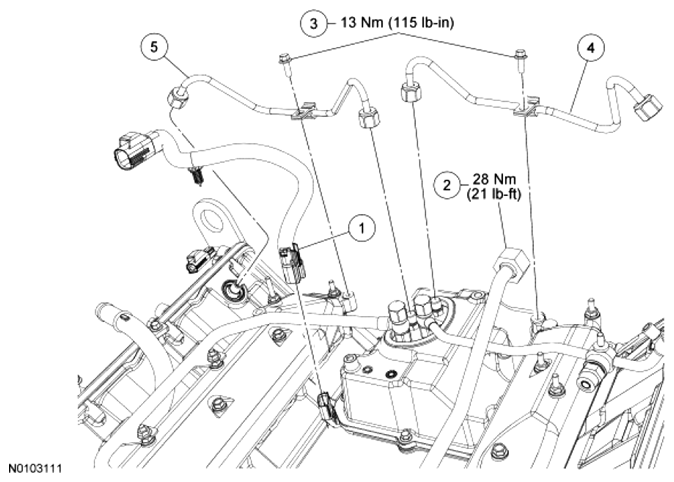

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | High pressure fuel injection pump electrical connector (part of 9F759) |
| 2 | - | Fuel injector return tube fitting (part of 9C273) |
| 3 | W300002 | Fuel rail supply tube bracket bolts (2 required) |
| 4 | 9A332 | LH fuel rail supply tube |
| 5 | 9A332 | RH fuel rail supply tube |
