Engine Rear Cover
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

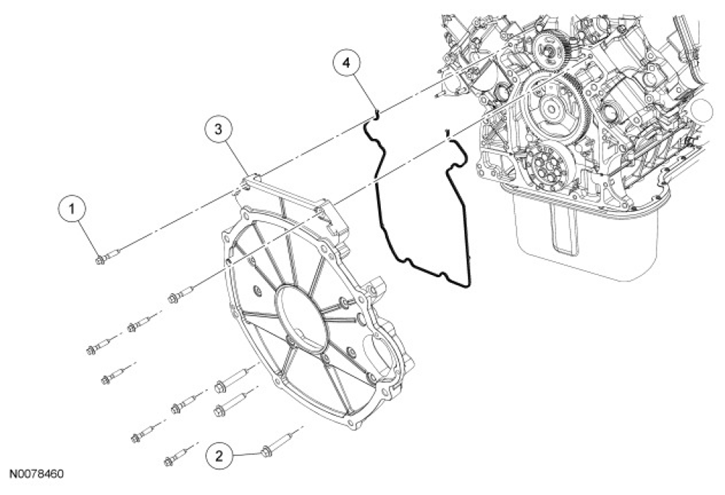

Manual transmission engine rear cover shown in the illustration, automatic transmission engine rear cover similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W300029 | Engine rear cover bolt (M8) (8 required) |
| 2 | 6379 | Engine rear cover bolt (M10) (3 required) (manual transmission only) |
| 3 | 6G091 | Engine rear cover |
| 4 | 6D083 | Engine rear cover gasket |
