Engine Mount - RH, Partial Body Lift: Removal

All vehicles

1. With the vehicle in NEUTRAL, position the vehicle on a hoist. For additional information, refer to JACKING & LIFTING .
2. Remove the starter. For additional information, refer to STARTING SYSTEM - DIESEL ENGINES .

   Vehicles with A/C

3. Remove the A/C compressor. For additional information, refer to CLIMATE CONTROL .

   Vehicles with dual generator

4. Remove the secondary generator. For additional information, refer to CHARGING SYSTEM .

   All vehicles

5. Disconnect the windshield washer hose.

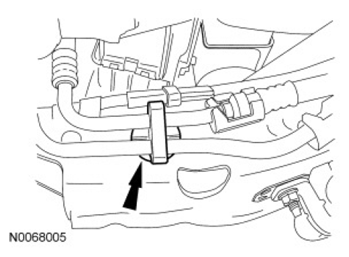

   Fig 1: Locating Windshield Washer Hose

   Courtesy of FORD MOTOR CO.
6. Disconnect the underhood light electrical connector and pin-type retainers. Position the wiring aside.

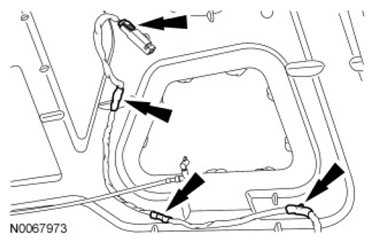

   Fig 2: Locating Underhood Light Electrical Connector And Pin-Type Retainers

   Courtesy of FORD MOTOR CO.
NOTE: Mark the location of the hinges prior to removing the hood.

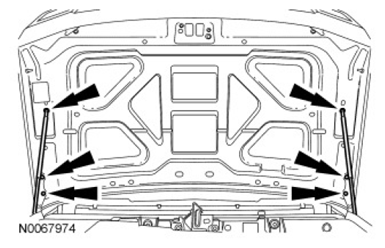

Fig 3: Locating Hood Lift Rods And Bolts
Courtesy of FORD MOTOR CO.
7. With the help of an assistant, disconnect the hood lift rods. Remove the 4 bolts and the hood.
8. Disconnect the parking brake cable at the cable-to-cable union. For additional information, refer to PARKING BRAKE AND ACTUATION .
9. Remove the parking brake cable from the frame bracket.

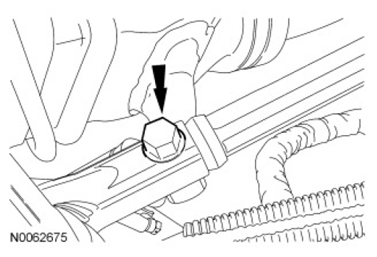

   Fig 4: Locating Parking Brake Cable

   Courtesy of FORD MOTOR CO.

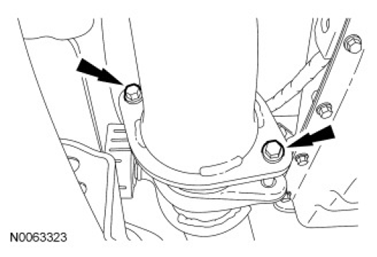

10. Remove the 2 exhaust downpipe bolts.

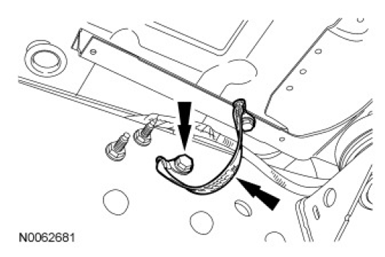

    Fig 5: Locating Exhaust Downpipe Bolts

    Courtesy of FORD MOTOR CO.

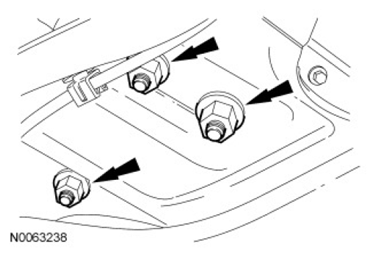

11. Remove and discard the 4 RH engine mount retaining nuts.

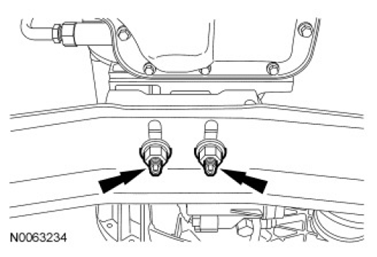

    Fig 6: Locating RH Engine Mount Retaining Nuts

    Courtesy of FORD MOTOR CO.
12. Remove and discard the 3 LH engine mount retaining nuts.

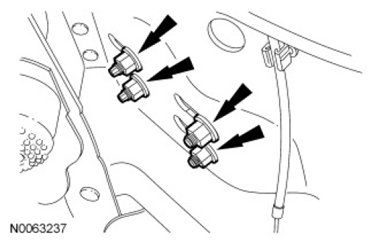

    Fig 7: Locating LH Engine Mount Retaining Nuts

    Courtesy of FORD MOTOR CO.

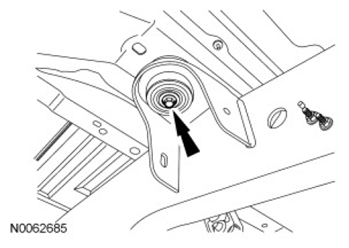

13. Remove and discard the 2 transmission mount retaining nuts.

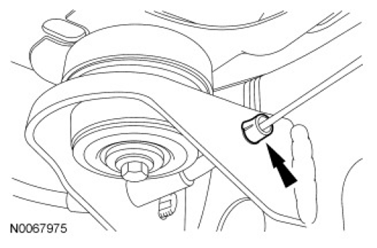

    Fig 8: Locating Transmission Mount Retaining Nuts

    Courtesy of FORD MOTOR CO.

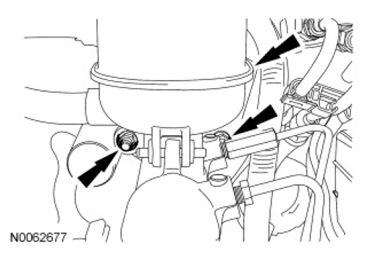

14. Remove the retaining nut for the transmission cooler tubes. Disconnect the transmission cooler tubes from the stud.
    Fig 9: Locating Transmission Cooler Tube Retaining Nut

    Courtesy of FORD MOTOR CO.

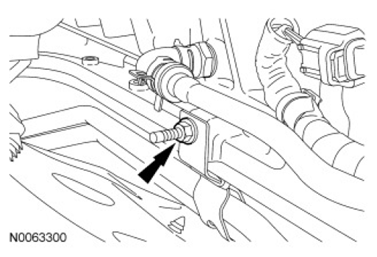

15. Remove the bolt and position aside the ground strap.
    Fig 10: Locating Bolt And Ground Strap

    Courtesy of FORD MOTOR CO.

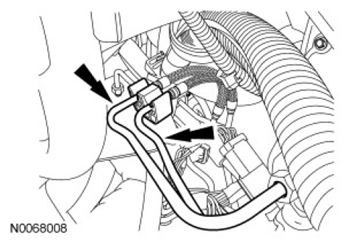

16. Disconnect the retaining clip for the transmission cooler tubes at the frame.
    Fig 11: Locating Retaining Clip For Transmission Cooler Tubes At Frame

    Courtesy of FORD MOTOR CO.
NOTE: RH side shown in the illustration, LH side similar.
Fig 12: Locating Bolts And Running Boards
Courtesy of FORD MOTOR CO.

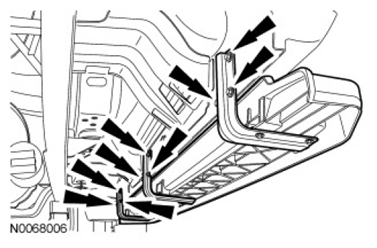

17. If equipped, remove the 18 bolts and the running boards.
NOTE: Use hand tools only to remove the body bolts. Failure to follow this instruction may result in damage to the cage nut.
Fig 13: Locating Body Bolts
Courtesy of FORD MOTOR CO.
18. Remove and discard the body bolts.

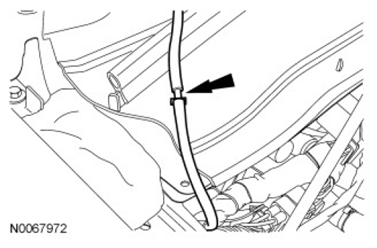

19. Disconnect the retaining clip for the power steering cooler tube at the frame.
    Fig 14: Locating Retaining Clip For Power Steering Cooler Tube At Frame

    Courtesy of FORD MOTOR CO.

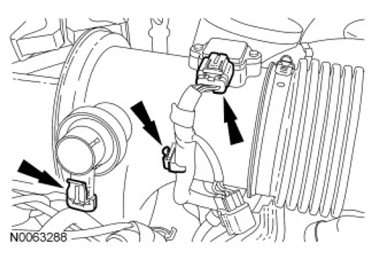

20. Disconnect the MAF  sensor and filter minder electrical connectors. Disconnect the retaining clip and position the wiring aside.
    Fig 15: Locating MAF Sensor And Filter Minder Electrical Connectors

    Courtesy of FORD MOTOR CO.

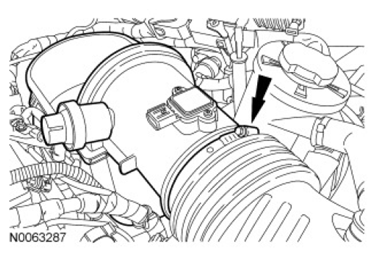

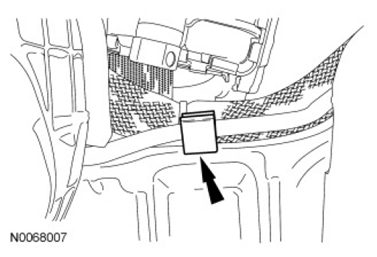

NOTE: The Air Cleaner (ACL) is most easily removed by lifting under the ACL  outlet pipe end to tilt it upward and separate it from the ACL  outlet pipe, then pulling the ACL  up and away from the ACL  intake pipe.
Fig 16: Locating ACL Assembly Clamp
Courtesy of FORD MOTOR CO.
21. Loosen the clamp and remove the ACL  assembly.
22. Disconnect the brake tubes from the retaining clip.
    Fig 17: Locating Brake Tubes And Retaining Clip

    Courtesy of FORD MOTOR CO.
23. Remove the 2 retaining nuts. Position the bracket and master cylinder aside.
    Fig 18: Locating Retaining Nuts, Bracket And Master Cylinder

    Courtesy of FORD MOTOR CO.
24. Remove and discard the bolt. Disconnect the steering shaft.
    Fig 19: Locating Steering Shaft Bolt

    Courtesy of FORD MOTOR CO.
25. Position the fender covers between the cab and the body.
26. Chock the tires.
WARNING: Securely strap the cab to the lift using an appropriate tool. If the cab is not correctly secured, it could shift or fall. Failure to follow this instruction may result in serious personal injury.
Fig 20: Positioning Hoist To Body
Courtesy of FORD MOTOR CO.

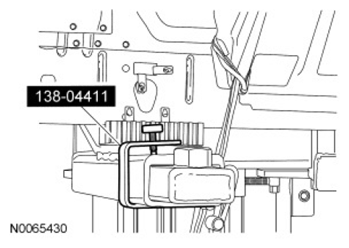

27. Position the hoist to the body. Using the Universal Cab Hold-Down Straps, secure the body to the hoist.

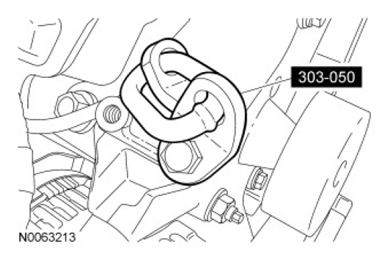

28. Install the Engine Lifting Bracket on the Front End Accessory Drive (FEAD) bracket.
    Fig 21: Identifying Engine Lifting Bracket On Front End Accessory Drive Bracket

    Courtesy of FORD MOTOR CO.
NOTE: Use a Heavy Duty Lifting Crane and load leveler rated at a minimum of 907 kg (2,000 lb) or damage to the vehicle may occur.

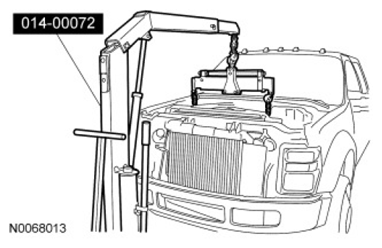

Fig 22: Positioning Heavy Duty Floor Crane With Commercially Available Load Leveler And Attach Chains To Front Of Engine
