RH Engine Mount
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

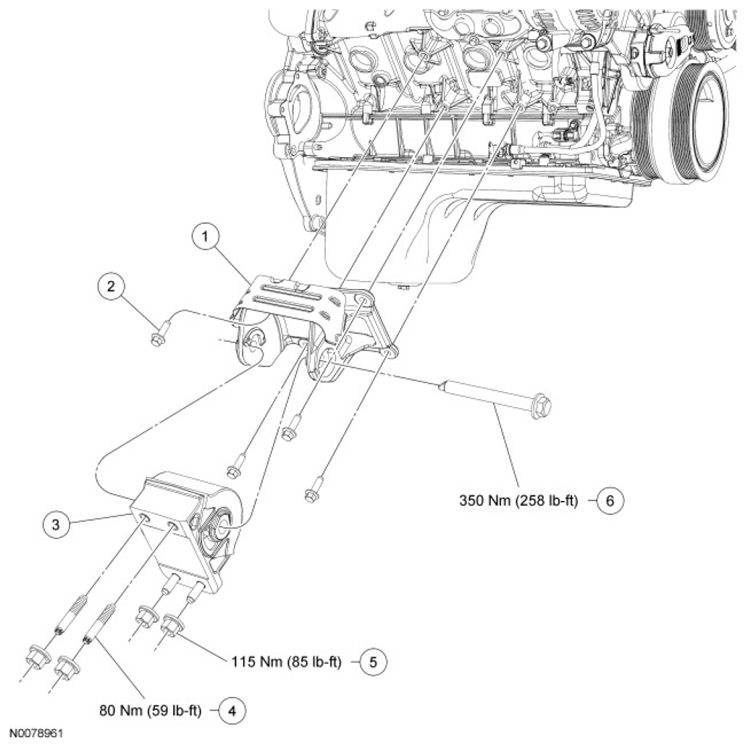

Courtesy of FORD MOTOR CO. PART DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
6046 |
RH engine mount bracket |
| 2 |
W712861 |
Engine mount bracket bolt (4 required) |
| 3 |
6038 |
RH engine mount |
| 4 |
W790018 |
Engine mount stud (2 required) |
| 5 |
W709771 |
Engine mount nut and washer assembly (4 required) |
| 6 |
W711959 |
Engine mount center bolt |
