Engine Mount - LH, Partial Body Lift: Installation

All vehicles

1. Clean the engine support insulator-to-cylinder block and engine support insulator-to-frame mating surfaces of any dirt or foreign material prior to installation.
NOTE: The engine mount bracket bolts must be discarded and new bolts installed or damage to the vehicle may occur. They are a torque-to-yield design and cannot be reused.
NOTE: The engine mount bracket bolts must not be tightened more than 90 degrees after initial torque or damage to the bolts may occur.
NOTE: Place a visible mark on the engine mount bracket and bracket bolts. Turning the bolt 1 flat of the bolt head is equal to 60 degrees.
2. Position the LH engine mount and bracket and install the 4 new bolts. Tighten in 2 stages:
   • It will be necessary to lower the engine slightly to start the bolts.
   • Stage 1: Tighten to 30 Nm (22 lb-ft).
   • Stage 2: Tighten a minimum of an additional 60 degrees.
NOTE: Do not tighten the bolt at this time.
3. Install the new center bolt for the LH engine mount.
4. Connect the fuel hoses at the engine.

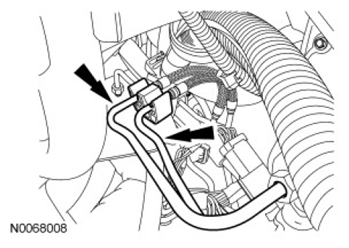

   Fig 1: Locating Fuel Hoses

   Courtesy of FORD MOTOR CO.
NOTE: Install a new O-ring seal on the oil indicator and tube. Apply clean engine oil to the O-ring seal.
5. Install the oil indicator and tube. Install the bolt.
   • Tighten to 13 Nm (115 lb-in).
     Fig 2: Locating Oil Level Indicator Tube Bolt

     Courtesy of FORD MOTOR CO.
6. Install the retaining nut for the oil level indicator and tube.
   • Tighten to 31 Nm (23 lb-ft).

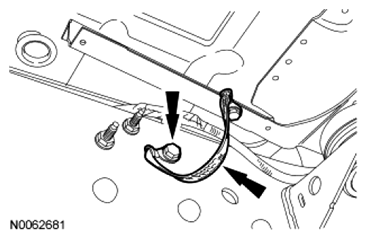

     Fig 3: Locating Oil Level Indicator Tube Retaining Nut

     Courtesy of FORD MOTOR CO.
NOTE: Make sure the engine mount studs are aligned with the frame openings.
7. With the help of an assistant, lower the engine and the body at the same time.
8. Remove the Universal Cab Hold-Down Straps and reposition the hoist to the frame of the vehicle.
9. Position the steering shaft into the housing. Install the new steering shaft bolt.
   • Tighten to 48 Nm (35 lb-ft).

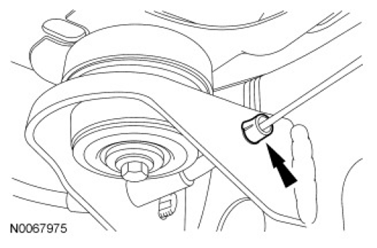

     Fig 4: Locating Steering Shaft Bolt

     Courtesy of FORD MOTOR CO.
10. Position back the master cylinder and bracket. Install the 2 retaining nuts.
    • Tighten to 30 Nm (22 lb-ft).

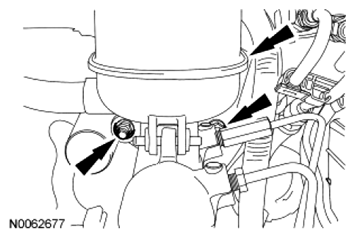

      Fig 5: Locating Retaining Nuts, Bracket And Master Cylinder

      Courtesy of FORD MOTOR CO.
11. Connect the brake tubes into the retaining clip.

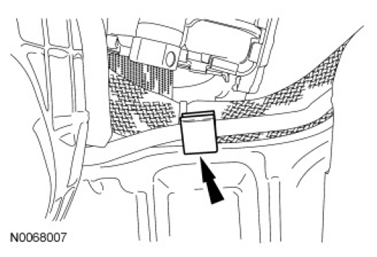

    Fig 6: Locating Brake Tubes And Retaining Clip

    Courtesy of FORD MOTOR CO.

    Vehicles with dual generators

12. Install the secondary generator. For additional information, refer to CHARGING SYSTEM .

    All vehicles

13. Install the upper cooling fan shroud. For additional information, refer to ENGINE COOLING .
14. Install the ACL  assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
15. Connect the retaining clip for the power steering cooler tube at the frame.

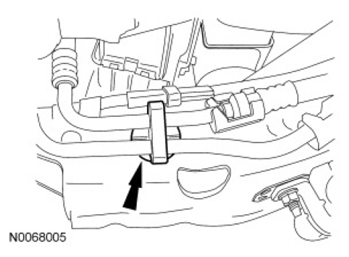

    Fig 7: Locating Retaining Clip For Power Steering Cooler Tube At Frame

    Courtesy of FORD MOTOR CO.
16. Install new body bolts.
    • Tighten to 90 Nm (66 lb-ft).
      Fig 8: Locating Body Bolts

      Courtesy of FORD MOTOR CO.
NOTE: RH side shown in the illustration, LH side similar.
17. If equipped, install the running boards and 18 bolts.
    • Tighten to 13 Nm (115 lb-in).
      Fig 9: Locating Bolts And Running Boards

      Courtesy of FORD MOTOR CO.
18. Tighten the center bolt for the LH motor mount.
    • Tighten to 350 Nm (258 lb-ft).
19. Connect the retaining clip for the transmission cooler tubes at the frame.
    Fig 10: Locating Retaining Clip For Transmission Cooler Tubes At Frame

    Courtesy of FORD MOTOR CO.
20. Position back the ground strap and install the bolt.
    • Tighten to 25 Nm (18 lb-ft).
      Fig 11: Locating Bolt And Ground Strap

      Courtesy of FORD MOTOR CO.
21. Position back the transmission cooler tubes on the stud and install the nut.
    • Tighten to 9 Nm (80 lb-in).
      Fig 12: Locating Transmission Cooler Tube Retaining Nut

      Courtesy of FORD MOTOR CO.
NOTE: Only use hand tools when installing the transmission mount retaining nuts or damage to the transmission mount may occur.
22. Install the 2 new transmission mount retaining nuts.
    • Tighten to 115 Nm (85 lb-ft).
      Fig 13: Locating Transmission Mount Retaining Nuts

      Courtesy of FORD MOTOR CO.
NOTE: Only use hand tools when installing the engine mount retaining nuts or damage to the engine mount may occur.
23. Install the 3 new LH engine mount retaining nuts.
    • Tighten to 200 Nm (148 lb-ft).
      Fig 14: Locating LH Engine Mount Retaining Nuts

      Courtesy of FORD MOTOR CO.
NOTE: Only use hand tools when installing the engine mount retaining nuts or damage to the engine mount may occur.
24. Install the 4 new RH engine mount retaining nuts.
    • Tighten to 115 Nm (85 lb-ft).
      Fig 15: Locating RH Engine Mount Retaining Nuts

      Courtesy of FORD MOTOR CO.
25. Install the 2 exhaust downpipe bolts.
    • Tighten to 40 Nm (30 lb-ft).
      Fig 16: Locating Exhaust Downpipe Bolts

      Courtesy of FORD MOTOR CO.
26. Install the parking brake cable into the frame bracket.
    Fig 17: Locating Parking Brake Cable

    Courtesy of FORD MOTOR CO.
27. Connect the parking brake cable at the cable-to-cable union. For additional information, refer to PARKING BRAKE AND ACTUATION .
28. With the help of an assistant, install the hood and 4 bolts. Connect the hood lift rods.
    • Tighten to 13 Nm (115 lb-in).
      Fig 18: Locating Hood Lift Rods And Bolts

      Courtesy of FORD MOTOR CO.
29. Connect the underhood light electrical connector and pin-type retainers.
    Fig 19: Locating Underhood Light Electrical Connector And Pin-Type Retainers

    Courtesy of FORD MOTOR CO.
30. Connect the windshield washer hose.
    Fig 20: Locating Windshield Washer Hose

    Courtesy of FORD MOTOR CO.
31. Connect the battery ground cables. For additional information, refer to BATTERY, MOUNTING AND CABLES .
