Body Bolts
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

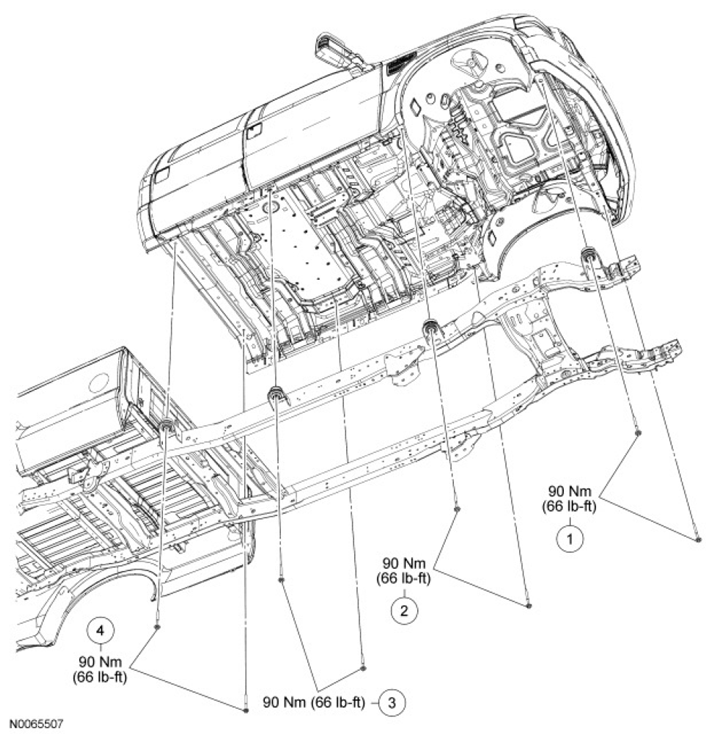

Crew Cab shown in the illustration, others similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W712878 | Front end sheet metal body mount bolts (all vehicles) (2 required) |
| 2 | W712878 | Body mount No. 1 bolts (all vehicles) (2 required) |
| 3 | W712879 | Body mount No. 2 bolts (Crew Cab only) (2 required) |
| 4 | W712878 | Body mount No. 3 bolts (all vehicles) (2 required) |
