Engine Mount - LH, Body On: Installation

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Clean the engine support insulator-to-cylinder block and engine support insulator-to-frame mating surfaces of any dirt or foreign material prior to installation.
    2. NOTE: The engine mount bracket bolts must be discarded and new bolts installed or damage to the vehicle may occur. They are a torque-to-yield design and cannot be reused.
    NOTE: The engine mount bracket bolts must not be tightened more than 90 degrees after initial torque or damage to the bolts may occur.
    NOTE: Place a visible mark on the engine mount bracket and bracket bolts. Turning the bolt 1 flat of the bolt head is equal to 60 degrees.
    NOTE: Install the top rear bolt first.
  2. Position the LH engine mount and bracket and install the 4 new bolts. Tighten in 2 stages:
    • It will be necessary to lower the engine slightly to start the bolts.
    • Stage 1: Tighten to 30 Nm (22 lb-ft).
    • Stage 2: Tighten a minimum of an additional 60 degrees.
    3. NOTE: It may be necessary to lower the engine to aid in installing the center bolt.
    NOTE: Do not tighten the bolt at this time.
  3. Install the new center bolt for the LH engine mount.
  4. Lower the engine.
  5. Tighten the center bolt for the LH motor mount.
    • Tighten to 350 Nm (258 lb-ft).
  6. Connect the fuel hoses at the engine.

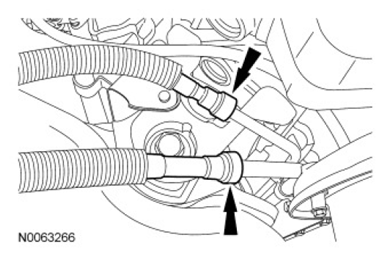

    Fig 1: Locating Fuel Hoses
    G06774579Courtesy of FORD MOTOR CO.
    7. NOTE: Install a new O-ring seal on the oil indicator and tube. Apply clean engine oil to the O-ring seal.
  7. Install the oil indicator tube and the bolt.
    • Tighten to 13 Nm (115 lb-in).
      Fig 2: Locating Oil Level Indicator Tube Bolt
      G06774433Courtesy of FORD MOTOR CO.
  8. Position back the transmission cooler tubes on the stud and install the nut.
    • Tighten to 9 Nm (80 lb-in).

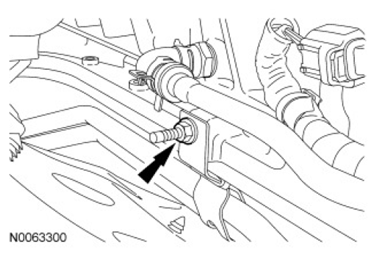

      Fig 3: Locating Transmission Cooler Tube Retaining Nut
      G06774351Courtesy of FORD MOTOR CO.
  9. Position back the ground cable and install the bolt.
    • Tighten to 47 Nm (35 lb-ft).

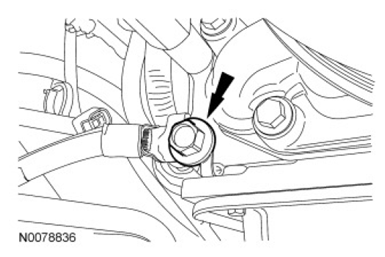

      Fig 4: Locating Bolt And Ground Cable
      G06774405Courtesy of FORD MOTOR CO.
  10. Loosely install the 2 exhaust downpipe bolts.

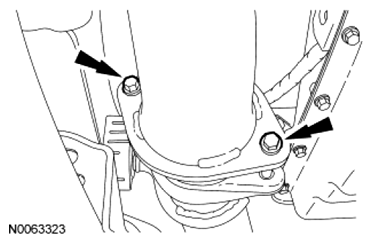

    Fig 5: Locating Exhaust Downpipe Bolts
    G06778518Courtesy of FORD MOTOR CO.
    11. NOTE: Only use hand tools when installing the transmission mount retaining nuts or damage to the transmission mount may occur.
  11. Remove and discard the 2 transmission mount retaining nuts. Install the 2 new transmission mount retaining nuts.
    • Tighten to 115 Nm (85 lb-ft).

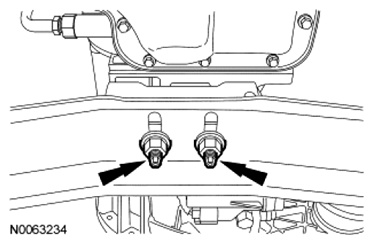

      Fig 6: Locating Transmission Mount Retaining Nuts
      G06778517Courtesy of FORD MOTOR CO.
    12. NOTE: Only use hand tools when installing the engine mount retaining nuts or damage to the engine mount may occur.
  12. Install the 3 new LH engine mount retaining nuts.
    • Tighten to 200 Nm (148 lb-ft).

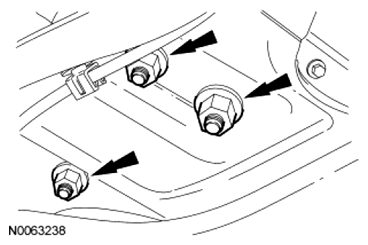

      Fig 7: Locating LH Engine Mount Retaining Nuts
      G06778516Courtesy of FORD MOTOR CO.
  13. Install the 2 new upper studs for the RH engine mount.
    • Tighten to 80 Nm (59 lb-ft).
      Fig 8: Locating Upper Studs For RH Engine Mount
      G06774401Courtesy of FORD MOTOR CO.
    14. NOTE: Only use hand tools when installing the engine mount retaining nuts or damage to the engine mount may occur.
  14. Install the 4 new RH engine mount retaining nuts.
    • Tighten to 115 Nm (85 lb-ft).

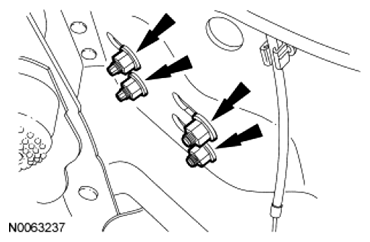

      Fig 9: Locating RH Engine Mount Retaining Nuts
      G06778515Courtesy of FORD MOTOR CO.
  15. Position the RH turbocharger inlet pipe in the vehicle.
    Fig 10: Locating RH Turbocharger Inlet Pipe
    G06777909Courtesy of FORD MOTOR CO.
    16. NOTE: Failure to correctly install the high-pressure fuel injection pump heat shield may result in engine damage.
    NOTE: High-pressure fuel injection pump heat shield removed for clarity.
  16. Install the high-pressure fuel injection pump heat shield in the vehicle and install the 2 center bolts.
    • Tighten to 13 Nm (115 lb-in).
      Fig 11: Locating High-Pressure Fuel Injection Pump Heat Shield Bolts
      G06774131Courtesy of FORD MOTOR CO.
    17. NOTE: Engine removed from the vehicle for clarity.
  17. Position the fuel tube bracket and ground strap. Install the 5 retaining nuts and bolt for the high pressure fuel injection pump heat shield.
    • Tighten the fuel line bracket nuts to 7 Nm (62 lb-in).
    • Tighten the remaining fasteners to 13 Nm (115 lb-in).
      Fig 12: Locating High-Pressure Fuel Injection Pump Heat Shield Bolt And Retaining Nuts
      G06774043Courtesy of FORD MOTOR CO.
  18. Position the EGR- OC  pipe in the vehicle.
    Fig 13: Locating EGR-Oxidation Catalytic Converter Pipe
    G06777908Courtesy of FORD MOTOR CO.
  19. Connect the EGRT  sensor connector to the glow plug module bracket.

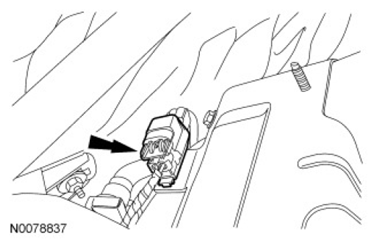

    Fig 14: Locating Exhaust Gas Recirculation Temperature Sensor Electrical Connector
    G06774393Courtesy of FORD MOTOR CO.
  20. Install the glow plug module and 2 retaining nuts.
    • Tighten to 13 Nm (115 lb-in).

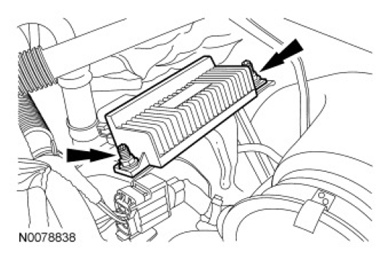

      Fig 15: Locating Glow Plug Module Nuts
      G06774392Courtesy of FORD MOTOR CO.
  21. Connect the glow plug module electrical connectors.

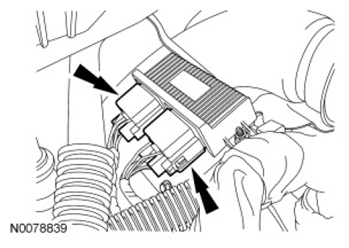

    Fig 16: Locating Glow Plug Module Electrical Connectors
    G06774391Courtesy of FORD MOTOR CO.
    22. NOTE: Use a socket to aid on installing the pushnuts.
    Fig 17: Locating Glow Plug Module Heat Shield Pushnuts
    G06777864Courtesy of FORD MOTOR CO.
  22. Install the glow plug module heat shield and 3 new pushnuts.
  23. Connect the PCM electrical connector and wire retainer.

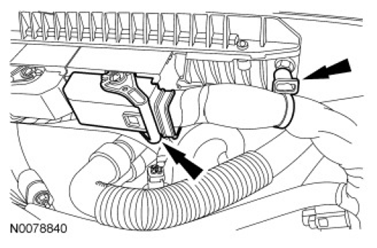

    Fig 18: Locating PCM Electrical Connector And Wire Retainer
    G06774389Courtesy of FORD MOTOR CO.
    24. NOTE: Install a new press-in-place gasket.
  24. Install the crankcase vent oil separator and 4 bolts.
    • Tighten to 13 Nm (115 lb-in).
      Fig 19: Locating Crankcase Vent Oil Separator Bolts
      G06777988Courtesy of FORD MOTOR CO.
  25. Connect the crankcase vent oil separator drain tube.
    Fig 20: Locating Crankcase Vent Oil Separator Drain Tube Clamp
    G06778116Courtesy of FORD MOTOR CO.
  26. With the help of an assistant, install the hood and 4 bolts. Connect the hood lift rods.
    • Tighten to 13 Nm (115 lb-in).

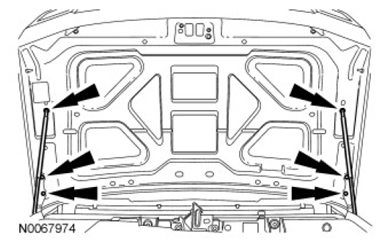

      Fig 21: Locating Hood Lift Rods And Bolts
      G06774343Courtesy of FORD MOTOR CO.
  27. Connect the underhood light electrical connector and pin-type retainers.

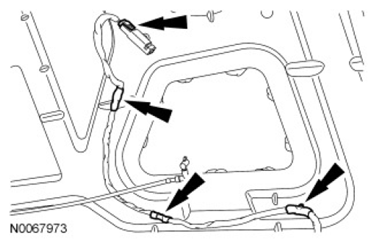

    Fig 22: Locating Underhood Light Electrical Connector And Pin-Type Retainers
    G06774342Courtesy of FORD MOTOR CO.
  28. Connect the windshield washer hose.

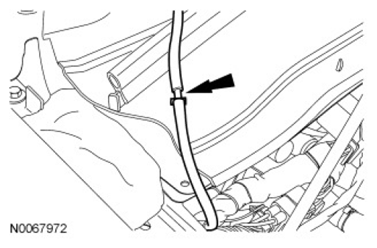

    Fig 23: Locating Windshield Washer Hose
    G06774341Courtesy of FORD MOTOR CO.

    Vehicles with dual generator

  29. Install the secondary generator. For additional information, refer to CHARGING SYSTEM .

    All vehicles

  30. Install the upper cooling fan shroud. For additional information, refer to ENGINE COOLING .
  31. Install the turbocharger. Carry out the Turbocharger - Body On procedure. For additional information, refer to FUEL CHARGING AND CONTROLS - TURBOCHARGER .
  32. Connect the battery ground cables. For additional information, refer to BATTERY, MOUNTING AND CABLES .
