Radiator Hoses

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

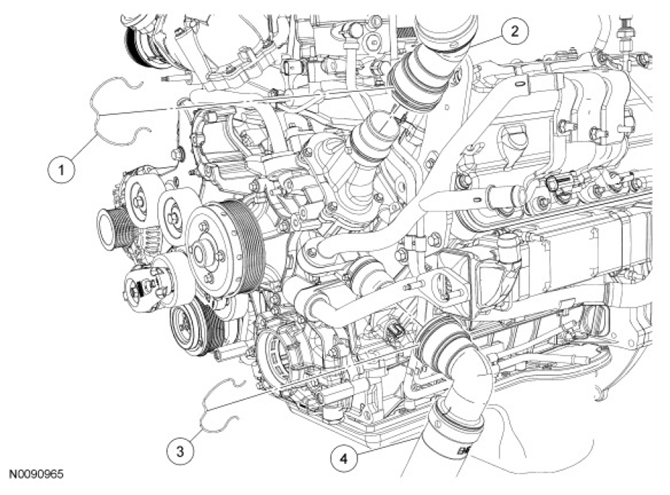

Fig 1: Identifying Radiator Hoses
G06774240Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 8286 Upper radiator hose retaining clip
2 8B274 Upper radiator hose
3 8286 Lower radiator hose retaining clip
4 8B273 Lower radiator hose
