Power Steering Pump
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

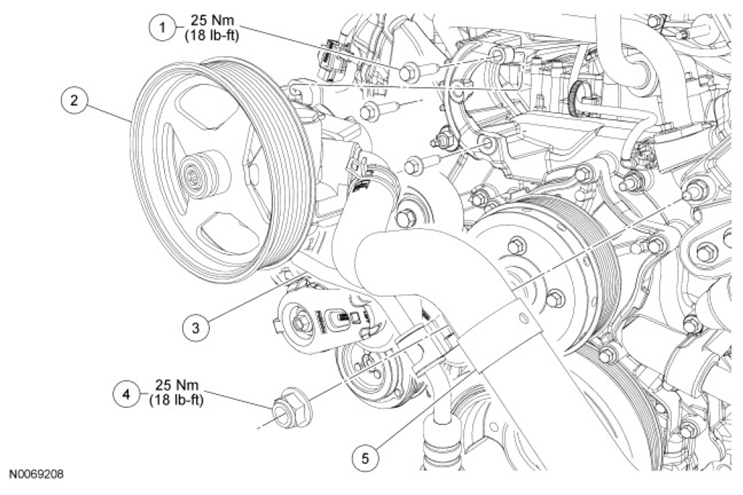

Courtesy of FORD MOTOR CO. PART DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W700839 |
Power steering pump bolt (3 required) |
| 2 |
3A696 |
Power steering pump assembly |
| 3 |
3F523 |
Power steering hose assembly |
| 4 |
W520112 |
Power steering hose retainer nut |
| 5 |
3E525 |
Power steering reservoir-to-pump hose assembly |
