Heater Supply Tube

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

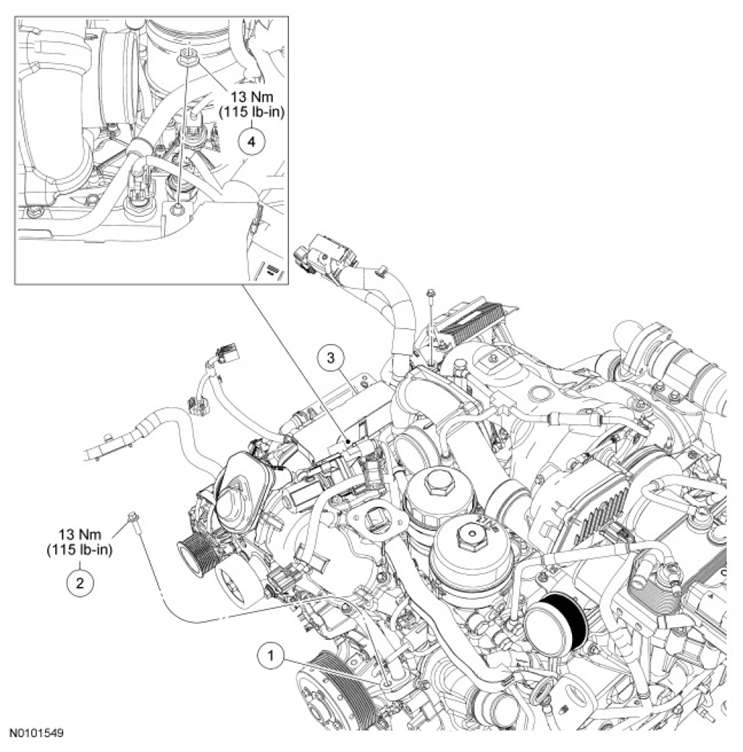

Fig 1: Heater Supply Tube With Torque Specifications
G06774242Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 8592 Heater supply tube
2 W300005 Heater supply tube bolt (2 required)
3 12B637 Engine wiring harness
4 W300049 Heater supply tube nut
