EGR Cooler
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

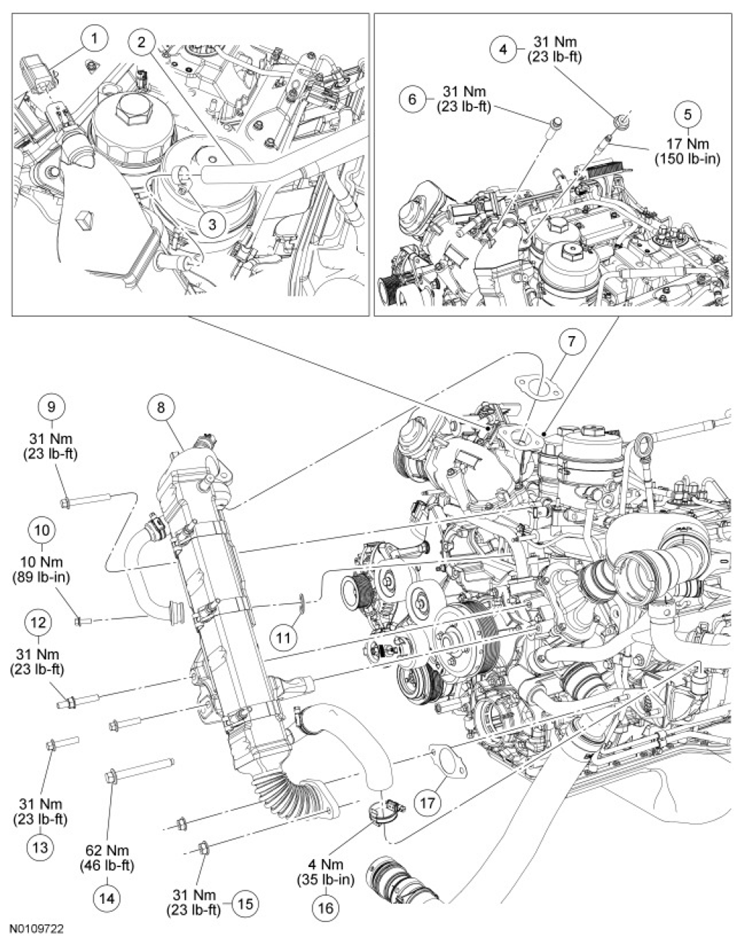

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Exhaust Gas Recirculation Temperature (EGRT) sensor electrical connector (part of 12B637) |
| 2 | 9Y439 | EGR cooler coolant hose |
| 3 | 8287 | EGR cooler hose clamp |
| 4 | W302551 | Vertical EGR cooler nut |
| 5 | - | Vertical EGR cooler stud |
| 6 | W302651 | Vertical EGR cooler bolt |
| 7 | 9E933 | Vertical EGR cooler gasket |
| 8 | 9P456 | Vertical EGR cooler assembly |
| 9 | W300006 | Vertical EGR cooler upper mounting bolt |
| 10 | - | EGR cooler coolant return tube bolt |
| 11 | W301924 | O-ring seal |
| 12 | W302054 | Vertical EGR cooler mounting bracket stud bolt |
| 13 | W3000014 | Vertical EGR cooler mounting bracket bolt (2 required) |
| 14 | - | Vertical EGR cooler mounting bracket bolt |
| 15 | W300050 | Vertical EGR cooler nut (2 required) |
| 16 | 8287 | Vertical EGR cooler coolant hose clamp |
| 17 | 9H454 | Horizontal EGR cooler outlet gasket |
