Coolant Pump and Thermostat
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

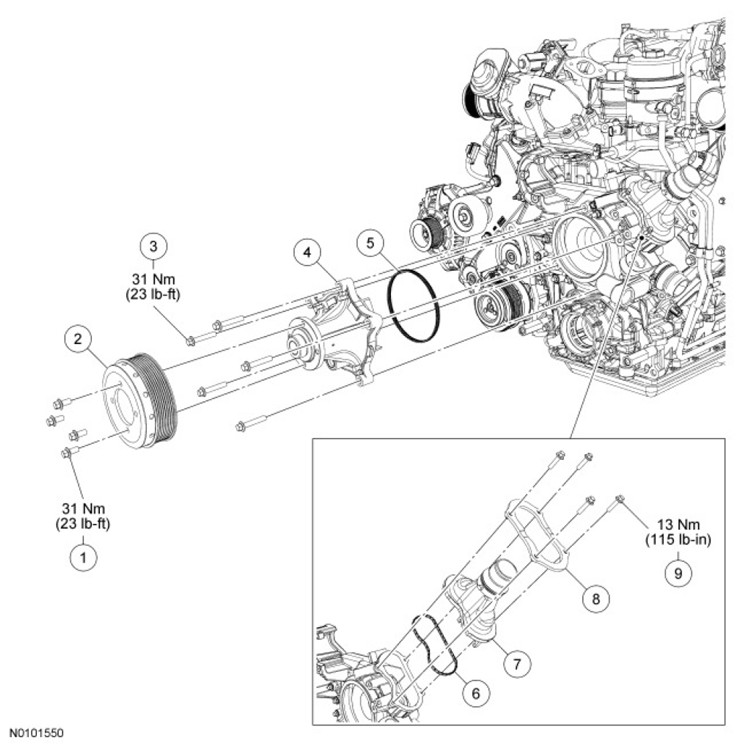

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W300001 | Coolant pump pulley bolt (4 required) |
| 2 | 8509 | Coolant pump pulley |
| 3 | W301572 | Coolant pump bolt (5 required) |
| 4 | 8501 | Coolant pump |
| 5 | 8507 | Coolant pump gasket |
| 6 | 8255 | Thermostat housing gasket |
| 7 | 8592 | Thermostat housing |
| 8 | - | Thermostat housing collar (part of 8592) |
| 9 | W300005 | Thermostat housing collar bolt (4 required) |
