Special Tool(s)
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS CHART
| Installer, Crankshaft Rear Seal and Wear Ring 303-770 |
|
| Slide Hammer 100-001 |
NOTE:

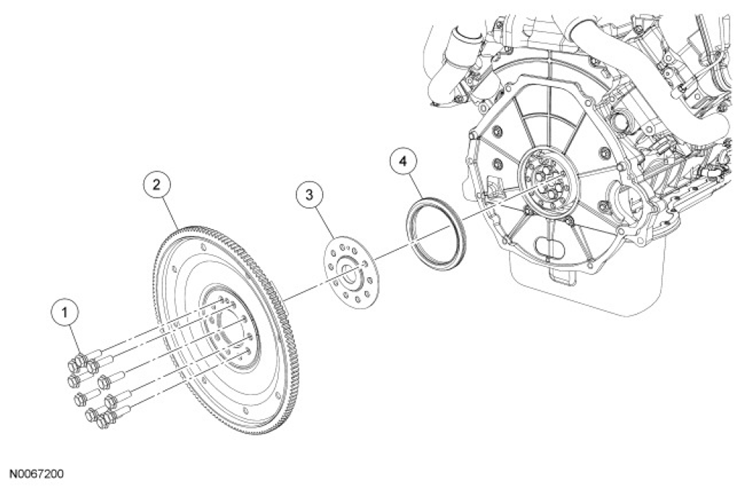

Automatic transmission shown in the illustration, manual transmission similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6379 | Flywheel bolt (10 required) |
| 2 | 6375 | Flywheel |
| 3 | 6A366 | Flywheel front adapter |
| 4 | 6701 | Crankshaft rear seal |
