Crankshaft Rear Seal: Installation

All vehicles

NOTE: A redesigned seal will have a flanged wear ring and pre-applied threadlock.

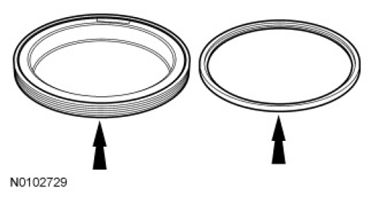

Fig 1: Locating Crankshaft Rear Seal And Wear Ring
Courtesy of FORD MOTOR CO.
1. Remove the new crankshaft rear seal and wear ring assembly and plastic step-up tool from the packing. Separate the plastic step-up tool (if installed on the crankcase rear seal) from the crankcase rear seal and wear ring assembly.
NOTE: The crankshaft rear seal and wear ring are one-piece and need to be installed as an assembly. Do not separate the wear ring from the crankshaft rear seal or damage to the seal may occur.

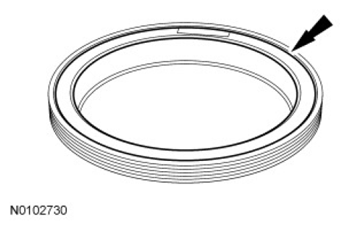

Fig 2: Locating Metal Face Of Wear Ring
Courtesy of FORD MOTOR CO.
2. Identify the metal face of the wear ring. This face must be installed so it is on the outside of the engine (facing the transmission).
NOTE: Lubricate the outer diameter of the rubber seal with a solution of dish soap and water (approximately 50/50 mix) prior to assembly. Do not use any other type of lubricant.

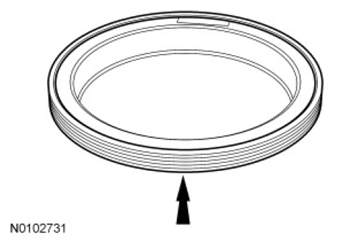

Fig 3: Locating Rubber Seal
Courtesy of FORD MOTOR CO.
3. Lubricate the outer diameter of the rubber seal with a solution of dish soap and water.
NOTE: Make sure the crankshaft alignment dowel fits in the Crankshaft Rear Seal and Wear Ring Installer base or engine damage may occur.

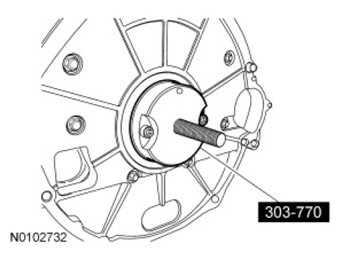

Fig 4: Identifying Crankshaft Rear Seal And Wear Ring Installer
Courtesy of FORD MOTOR CO.
4. Install the Crankshaft Rear Seal and Wear Ring Installer base and 2 bolts to the crankshaft flange.
NOTE: When positioning the crankshaft rear seal and wear ring assembly on the Crankshaft Rear Seal and Wear Ring Installer base, align it to the opening on the engine rear cover and manually start the crankcase rear seal installation.
Fig 5: Locating Crankshaft Rear Seal And Wear Ring Assembly
Courtesy of FORD MOTOR CO.
5. Position the crankshaft rear seal and wear ring assembly on the Crankshaft Rear Seal and Wear Ring Installer base.
NOTE: The plastic step-up tool increases the flat surface area of the Crankshaft Rear Seal and Wear Ring Installer. Failure to use the plastic step-up tool during installation will result in damage to the crankshaft rear seal and wear ring assembly.

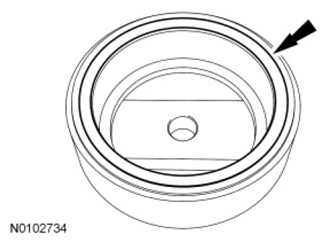

Fig 6: Locating Crankshaft Rear Seal And Wear Ring Installer
Courtesy of FORD MOTOR CO.
6. Insert the plastic step-up tool into the Crankshaft Rear Seal and Wear Ring Installer with the step-edge toward the installer.
NOTE: The crankshaft rear seal face and the wear ring must be flush with the rear engine cover or damage to the crankshaft rear seal or wear ring may occur.
NOTE: Do not allow the engine to rotate during the installation of the crankshaft rear seal and wear ring assembly or damage to the crankshaft rear seal or wear ring may occur.

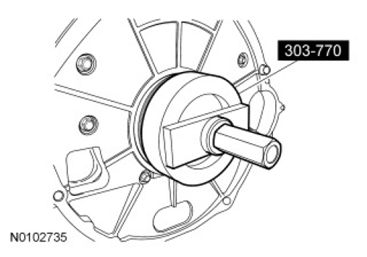

Fig 7: Identifying Crankshaft Rear Seal And Wear Ring Installer
Courtesy of FORD MOTOR CO.
7. Using the Crankshaft Rear Seal and Wear Ring Installer, install the new crankshaft rear seal and wear ring assembly until the installation tool contacts the rear engine cover.
8. If equipped, install the flywheel front adapter.
9. Install the flexplate or flywheel and 10 new bolts. Tighten the bolts in 2 stages, in the sequence shown in the illustration.
   • Stage 1: Tighten to 5 Nm (44 lb-in).
   • Stage 2: Tighten to 94 Nm (69 lb-ft).

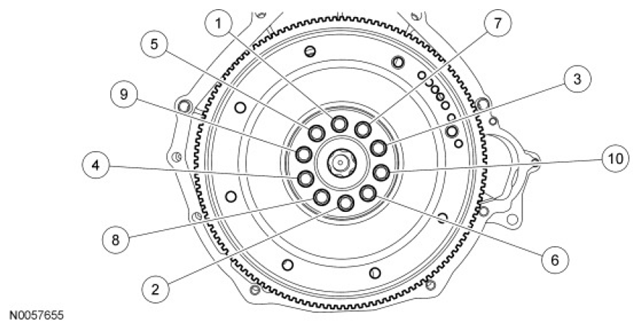

     Fig 8: Identifying Flexplate Bolts Tightening Sequence

     Courtesy of FORD MOTOR CO.

   Vehicles with manual transmission

10. Install the clutch disc and pressure plate. For additional information, refer to CLUTCH .

    All vehicles

11. Install the transmission. For additional information, refer to INSTALLATION for automatic transmissions or MANUAL TRANSAXLE/TRANSMISSION - ZF 6-SPEED for manual transmissions.
