Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
  2. Punch 2 holes in the seal.

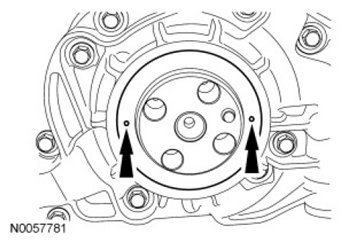

    Fig 1: Locating Holes In Crankshaft Front Seal
    G06774234Courtesy of FORD MOTOR CO.
  3. Using the Oil Seal Remover, remove and discard the crankshaft seal.

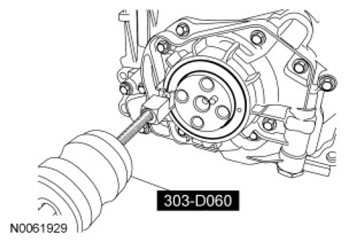

    Fig 2: Removing Crankshaft Seal
    G06774235Courtesy of FORD MOTOR CO.
    4. NOTE: Production seals will not have a wear sleeve. If a service part has been installed, it will have a wear sleeve.

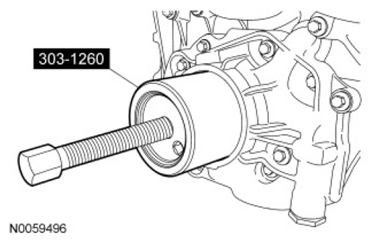

    Fig 3: Removing Crankshaft Seal Wear Sleeve Using Crankshaft Seal Remover
    G06774236Courtesy of FORD MOTOR CO.
  4. If equipped, using the Crankshaft Seal Remover, remove and discard the crankshaft seal wear sleeve.
