Core Plug Replacement: Material

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
Threadlock 262
TA-26		 WSK-M2G351-A6
  1. To remove the cylinder block core plug, use a punch and hammer near the edge of the plug and strike with a hammer.
    • Clean the crankcase opening.
  2. Coat the edges of the new cylinder block core plug and crankcase with threadlock prior to installing the cup plug.
  3. Using an appropriate tool, install the new cylinder block core plug. It should be flush with the crankcase surface to approximately 1.50 mm (0.05 in) below the surface.
    • Clean off the excess threadlock.

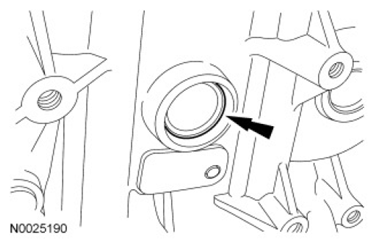

      Fig 1: Locating Cylinder Block Core Plug
      G06774000Courtesy of FORD MOTOR CO.
