Connecting Rod Bushing Diameter

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable solvent, thoroughly clean the connecting rod and cap.
  2. Mark each connecting rod and its corresponding cap.
  3. Use a telescoping gauge and a 25-50 mm (1-2 in) micrometer to measure the inside diameter of the piston pin bushing. Install a new connecting rod if not within specifications. For additional information, refer to SPECIFICATIONS .

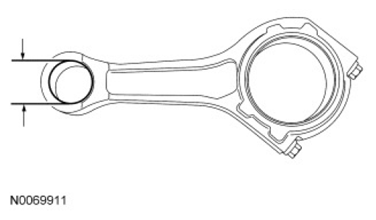

    Fig 1: Measuring Inside Diameter Of Piston Pin Bushing
    G06773995Courtesy of FORD MOTOR CO.
  4. Measure the piston pin diameter in 2 directions at the points shown in the illustration. Verify the diameter is within specification. For additional information, refer to SPECIFICATIONS .
    • If out of specification, install a new piston pin.
      Fig 2: Measuring Piston Pin Diameter
      G06773996Courtesy of FORD MOTOR CO.
