Connecting Rod Bearing Journal Taper and Out-of-Round
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Mark each connecting rod and its corresponding rod cap for correct installation.
- Using a suitable solvent, thoroughly clean the connecting rod and rod cap.

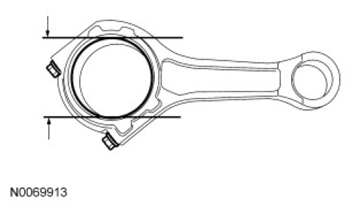

- Use a telescoping gauge and a 50-75 mm (2-3 in) micrometer to measure the connecting rod bearing bore.
- Remove the connecting rod bearings from the connecting rod and the connecting rod cap. Install the connecting rod cap onto the connecting rod and tighten the bolts in 2 stages.
- Stage 1: Tighten to 45 Nm (33 lb-ft).
- Stage 2: Tighten to 68 Nm (50 lb-ft).
- Measure and record the connecting rod bearing bore as indicated. Install new connecting rods if not within specification. For additional information, refer to SPECIFICATIONS .
- Remove the connecting rod bearings from the connecting rod and the connecting rod cap. Install the connecting rod cap onto the connecting rod and tighten the bolts in 2 stages.
- Use a telescoping gauge and a 50-75 mm (2-3 in) micrometer to measure the connecting rod bearing bore taper.

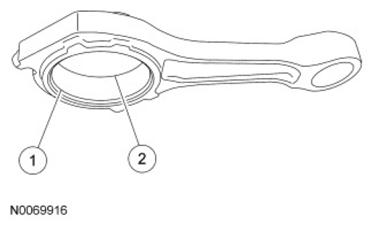

- Measure the bearing bore inside diameter near the large chamfer.
- Measure the bearing bore inside diameter near the small chamfer.
- The difference between the 2 readings is the bore taper. Install new connecting rods if not within specifications. For additional information, refer to SPECIFICATIONS .
