Bearing Inspection

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect bearings for the following defects. Possible causes are shown.
    1. Cratering - fatigue failure.
    2. Spot glazing - incorrect seating.
    3. Scratching - dirty.
    4. Base exposed - poor lubrication.
    5. Both edges worn - journal damaged.
    6. One edge worn - journal tapered or bearing not seated.

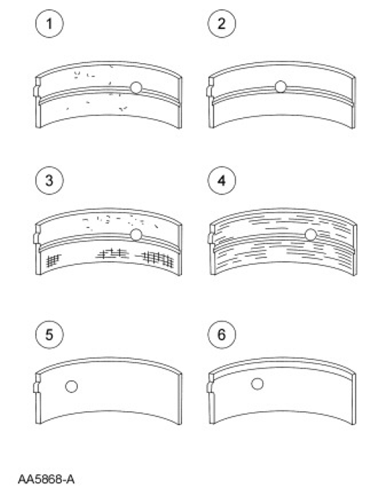

      Fig 1: Inspecting Bearings
      G06773987Courtesy of FORD MOTOR CO.
