LH Exhaust Manifold
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

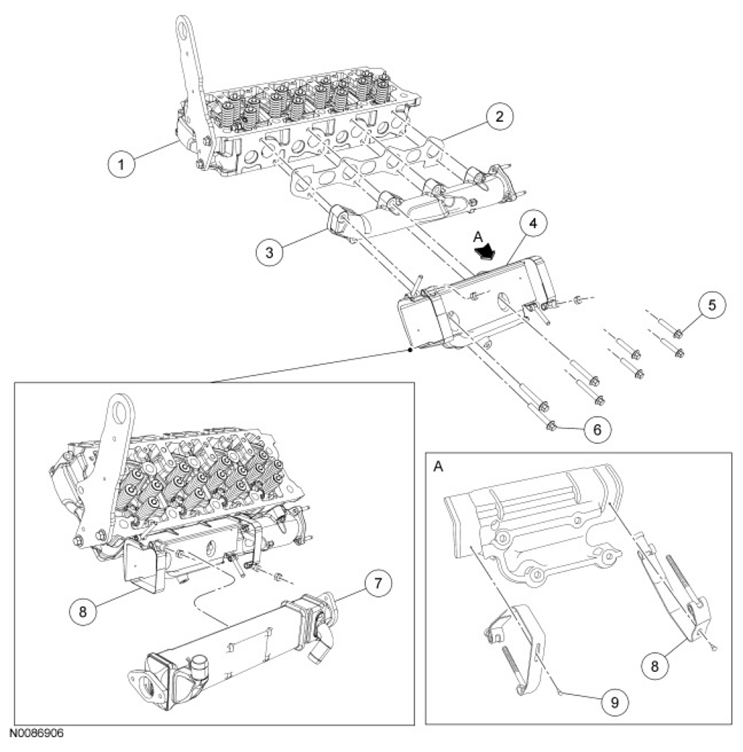

Courtesy of FORD MOTOR CO. PART DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
6049 |
Cylinder head |
| 2 |
9448 |
Exhaust manifold gasket |
| 3 |
9430 |
Exhaust manifold |
| 4 |
9F465 |
EGR cooler bracket |
| 5 |
- |
Bolt (4 required) |
| 6 |
W302652 |
Bolt (4 required) |
| 7 |
9F464 |
Horizontal EGR cooler |
| 8 |
8287 |
EGR cooler clamp (2 required) |
| 9 |
W302549 |
Pin (2 required) |
