LH Cylinder Head
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

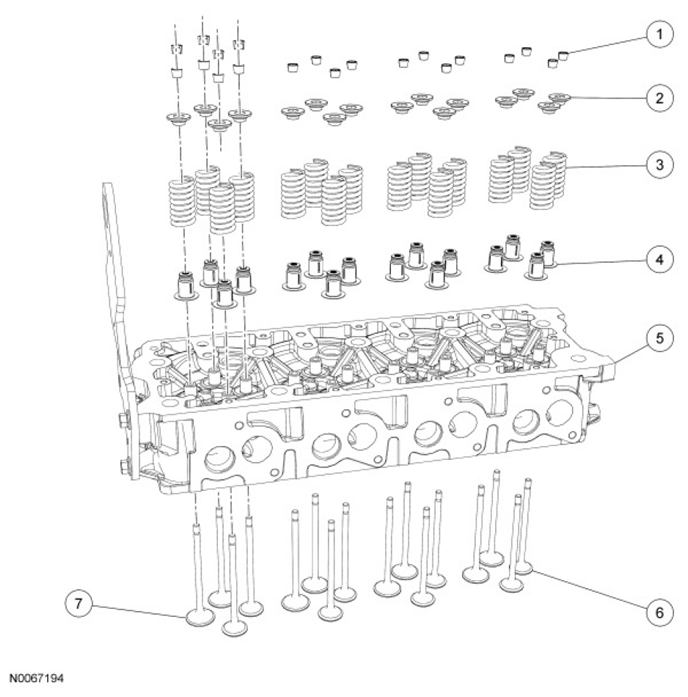

Courtesy of FORD MOTOR CO. PART DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
6518 |
Valve stem key (32 required) |
| 2 |
6514 |
Valve spring retainer (16 required) |
| 3 |
6513 |
Valve spring (16 required) |
| 4 |
6571 |
Valve seal assembly (16 required) |
| 5 |
6049 |
Cylinder head |
| 6 |
6505 |
Exhaust valve (8 required) |
| 7 |
6507 |
Intake valve (8 required) |
