Engine Code Information Label
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

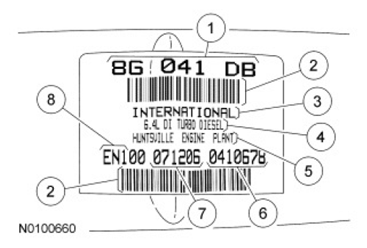

The engine code information label is located on the front of vertical EGR cooler, contains the following:
ITEM DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | Engine part number |
| 2 | Bar code |
| 3 | Engine manufacture |
| 4 | Engine displacement |
| 5 | Engine build location |
| 6 | Engine serial number |
| 7 | Engine build date (DDMMYY) |
| 8 | Engine build location |
