Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable. Refer to BATTERY, MOUNTING AND CABLES .

CAUTION: Use care not to damage the instrument panel when removing the headlamp switch.

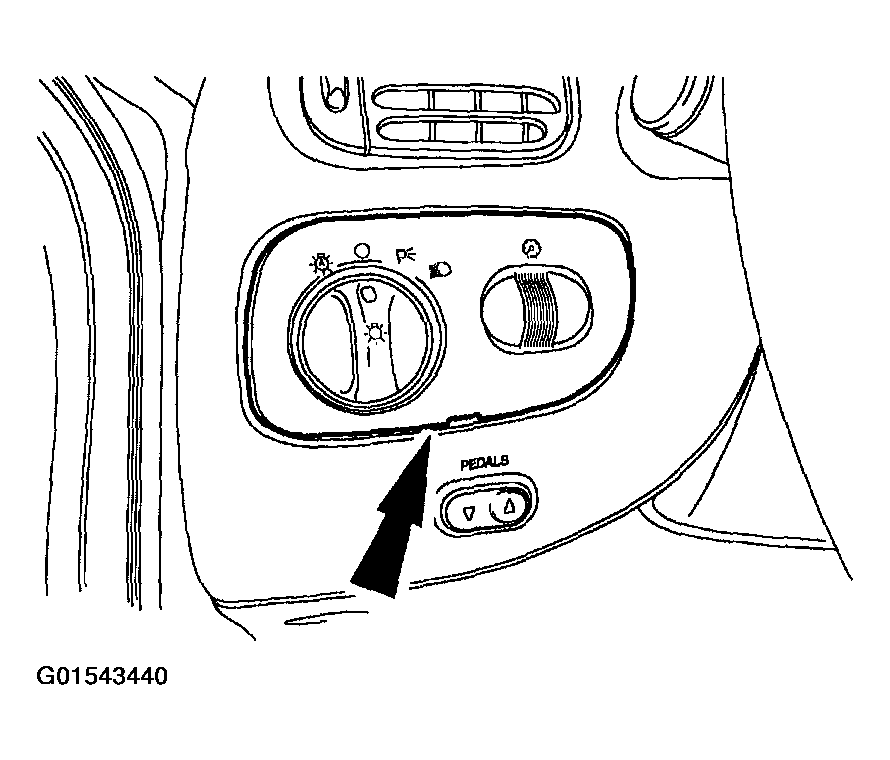

Fig 1: Prying Headlamp Switch From Instrument Panel

Courtesy of FORD MOTOR CO.

Using a small screwdriver, pry the headlamp switch from the instrument panel.
Disconnect the electrical connectors and remove the headlamp switch.

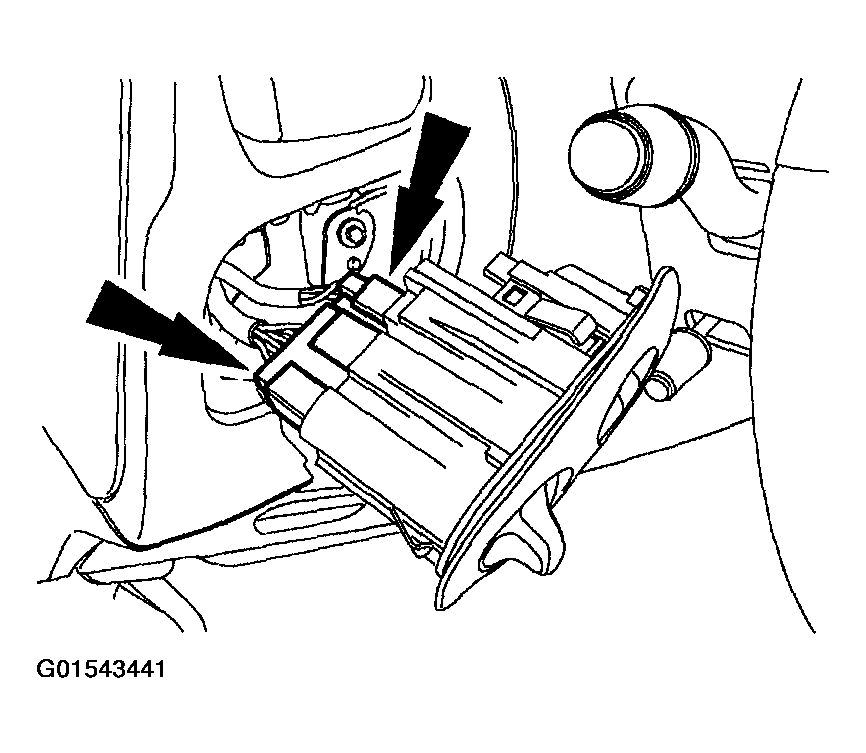

Fig 2: Disconnecting Electrical Connectors And Removing Headlamp Switch
Courtesy of FORD MOTOR CO.
Remove the adjustable pedal switch.
1. Push the adjustable pedal switch out of the instrument panel far enough to access the electrical connector.
2. Disconnect the electrical connector and remove the adjustable pedal switch.

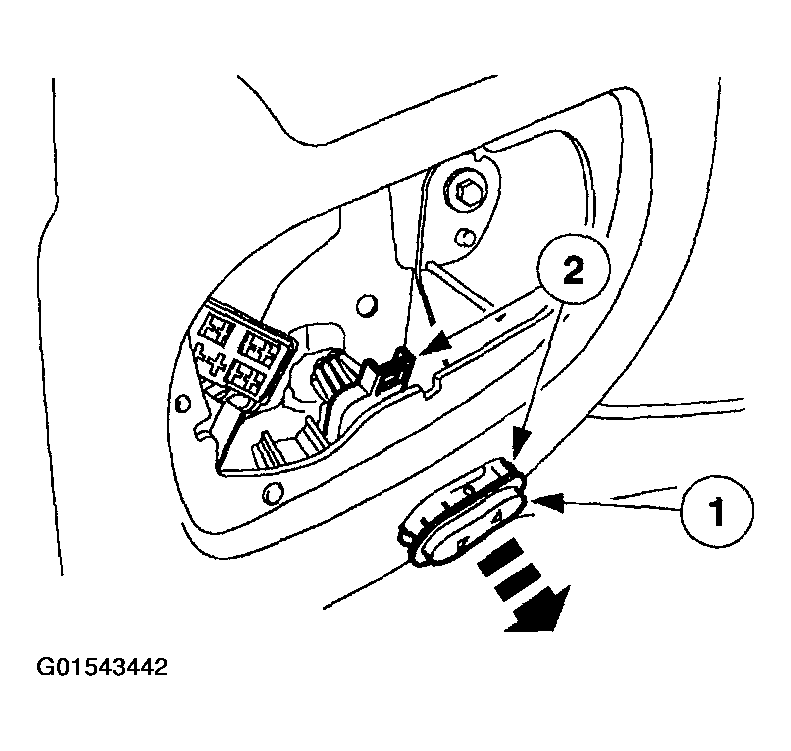

  Fig 3: Disconnecting Electrical Connector And Removing Adjustable Pedal Switch
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
