Master Cylinder: Assembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Use clean High Performance DOT 3 Motor Vehicle Brake Fluid C6AZ-19542-AB or equivalent DOT 3 fluid meeting Ford specification ESA-M6C25-A to lubricate the new piston assembly seals.
Carefully install the secondary piston assembly.

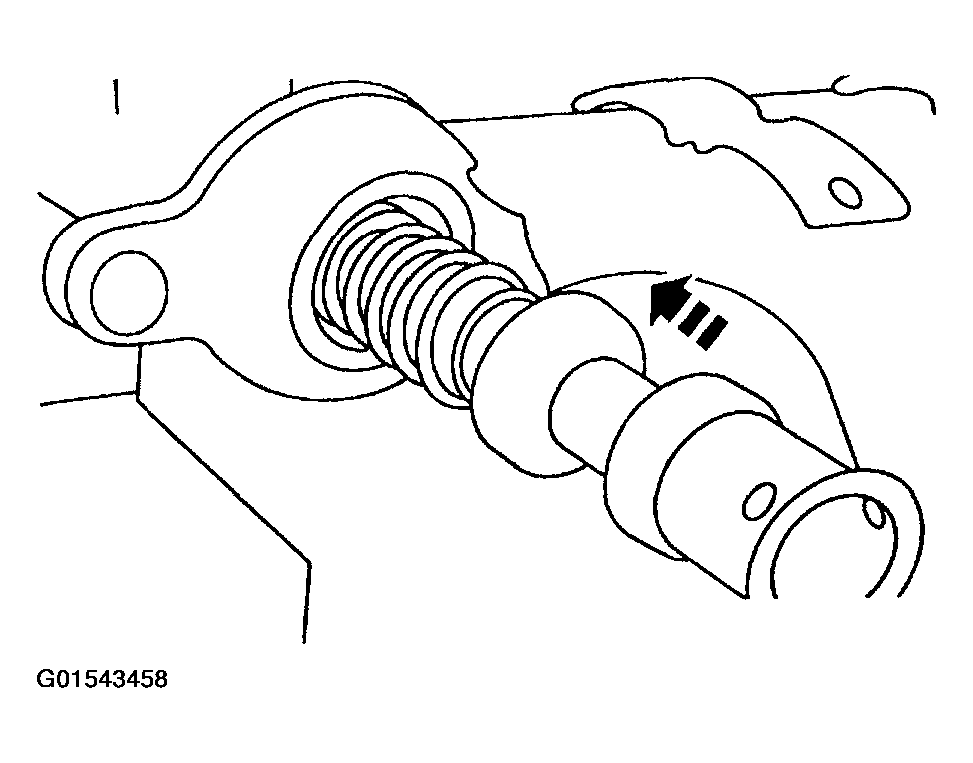

Fig 1: Installing Secondary Piston Assembly
Courtesy of FORD MOTOR CO.
Carefully install the primary piston assembly.

Fig 2: Installing Primary Piston Assembly
Courtesy of FORD MOTOR CO.
Install the snap ring.
1. Depress the primary piston.
2. Install the snap ring.

  Fig 3: Installing Snap Ring
  Courtesy of FORD MOTOR CO.
If so equipped, install the brake pressure switch.

Fig 4: Installing Brake Pressure Switch
Courtesy of FORD MOTOR CO.
Install the brake master cylinder. Refer to Brake Master Cylinder .
