Axle Assembly: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Follow the removal procedure in reverse order.
- Install the brake calipers. Refer to DISC - EXCURSION, F250-F550 SUPER DUTY PICKUP .

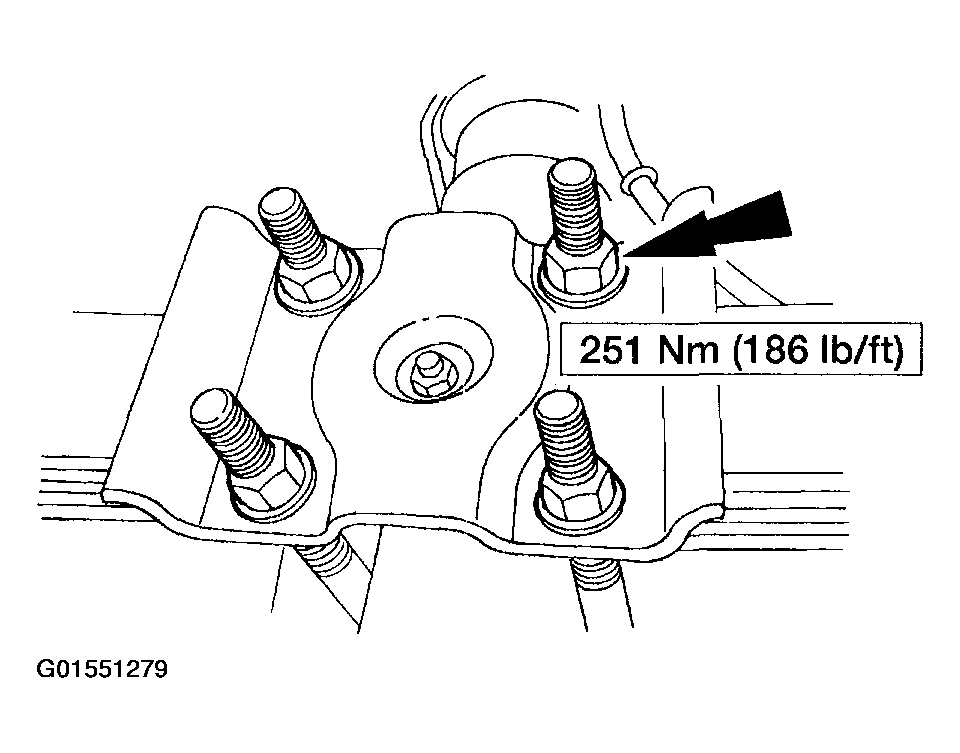

  Fig 1: Installing U-Bolt Nuts
  Courtesy of FORD MOTOR CO.

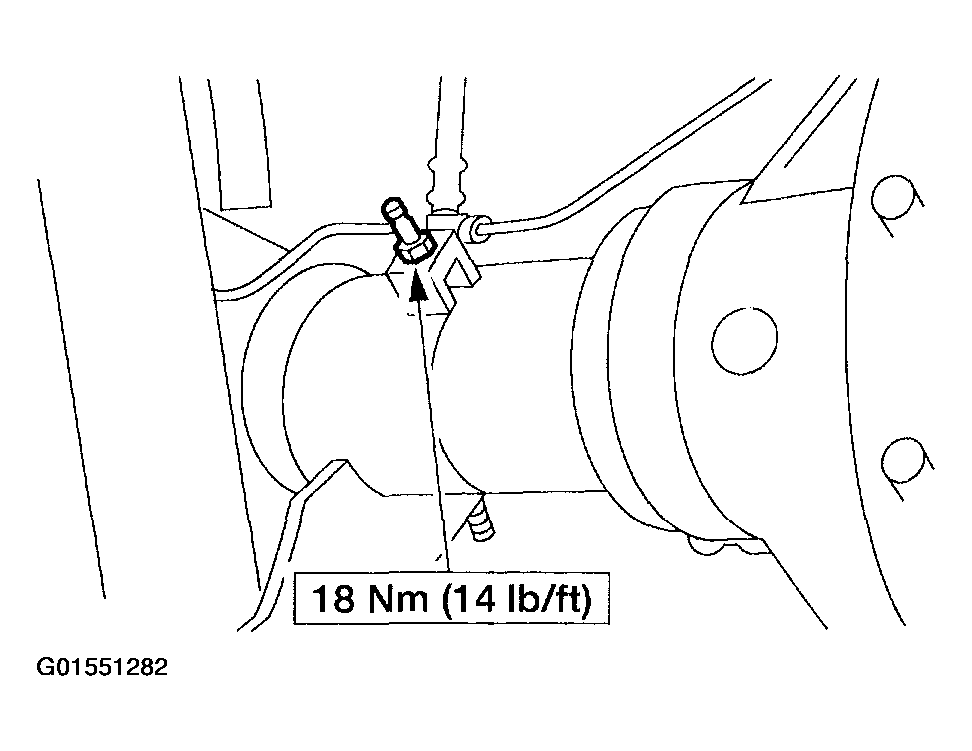

  Fig 2: Installing Brake Hose Junction Block From Rear Axle Housing
  Courtesy of FORD MOTOR CO.

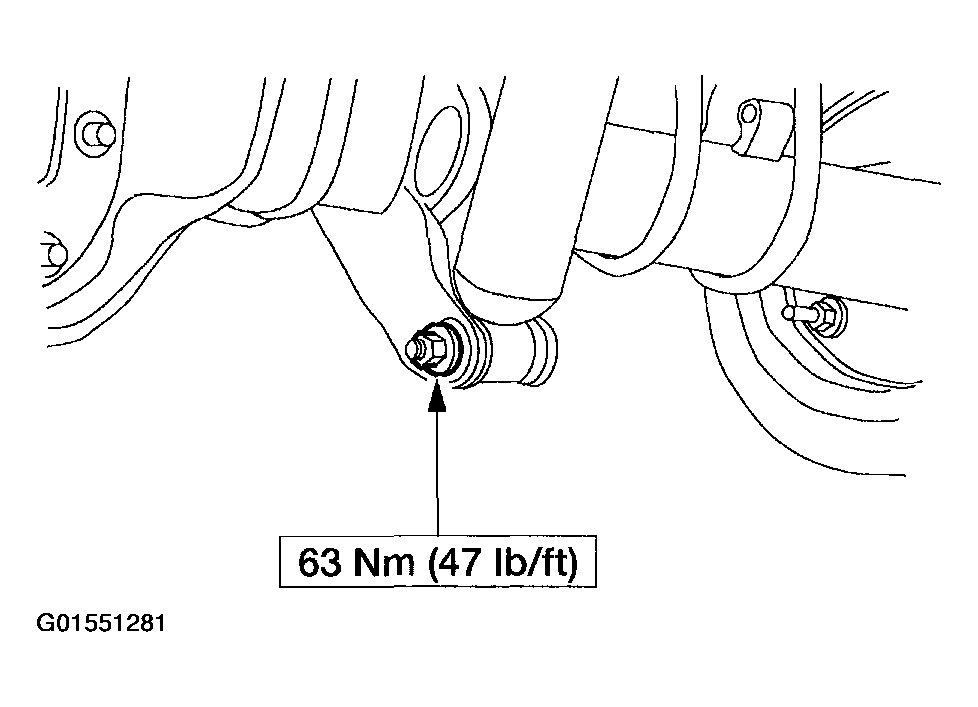

  Fig 3: Installing Lower Shock Absorber Nuts And Bolts
  Courtesy of FORD MOTOR CO.
