Drive Pinion: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the differential case. Refer to Differential Case .
Remove the driveshaft. Refer to DRIVESHAFT - EXCURSION & F250-F550 SUPER DUTY PICKUP .

CAUTION: After removal of the pinion nut, discard it. A new nut must be used for installation.

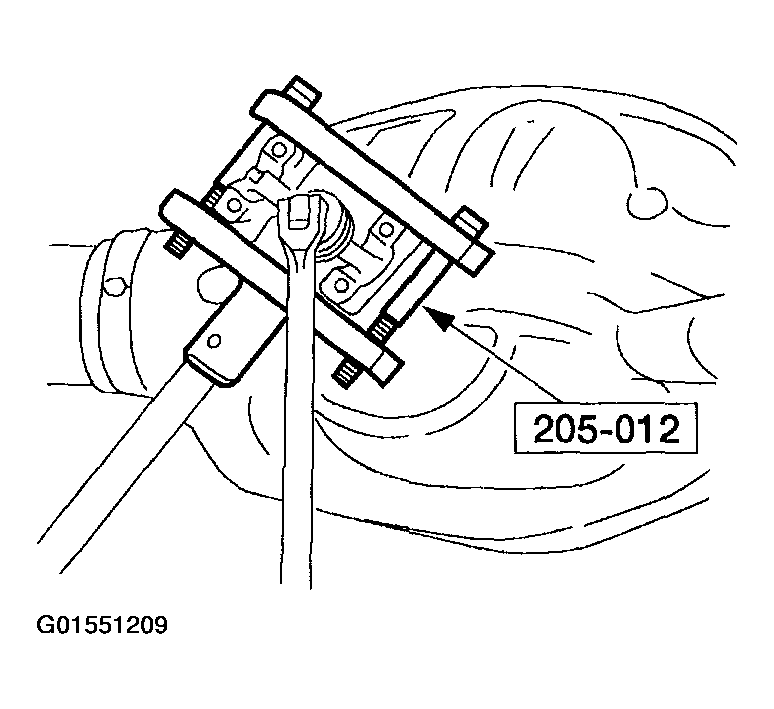

Fig 1: Removing Pinion Nut Using Special Tool

Courtesy of FORD MOTOR CO.

Remove the pinion nut using the special tool.
Remove the pinion flange, using the special tool.
- Remove the rear axle drive pinion seal. Refer to Drive Pinion Flange and Drive Pinion Seal .
- Remove the rear axle drive pinion shaft oil slinger.

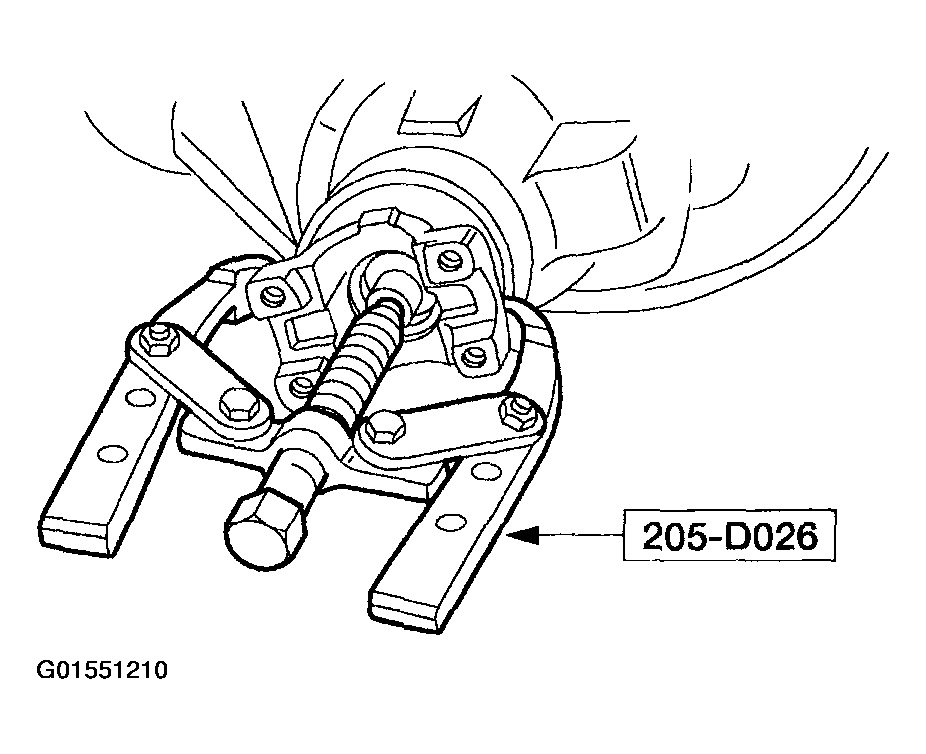

  Fig 2: Removing Pinion Flange, Using Special Tool
  Courtesy of FORD MOTOR CO.
Install the special tool and, with a soft-faced hammer, drive the pinion out of the front bearing cone and remove it through the rear of the housing.

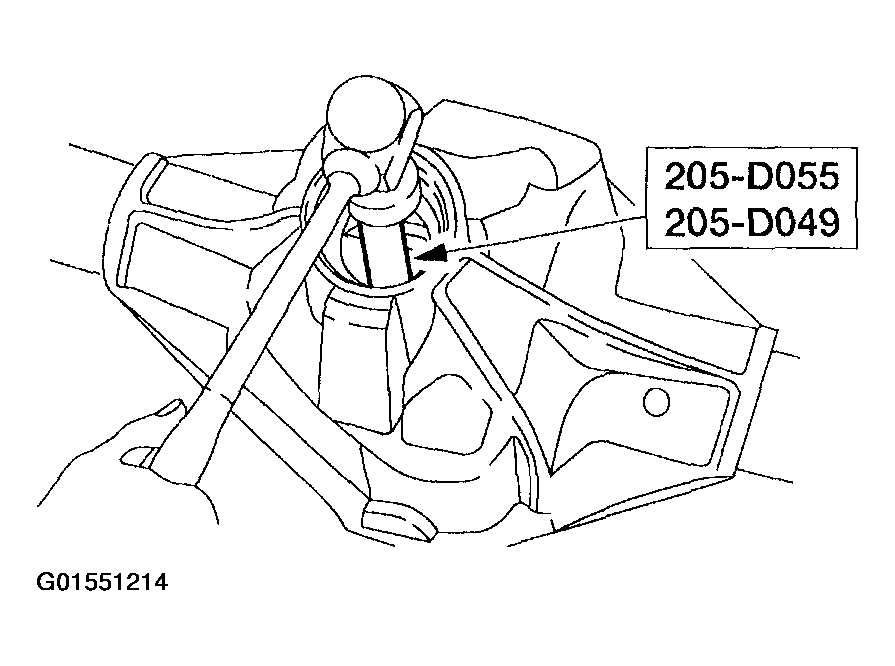

Fig 3: Driving Pinion Out Of Front Bearing Cone
Courtesy of FORD MOTOR CO.

NOTE: Remove the collapsible spacer and discard it.

Fig 4: Removing Collapsible Spacer

Courtesy of FORD MOTOR CO.

Use the special tool to remove the pinion bearing.

NOTE: Do not remove the pinion bearing cups from the carrier casting unless the cups are damaged.

Fig 5: Removing Outer Differential Bearing Cup With Special Tools

Courtesy of FORD MOTOR CO.

Remove the outer differential bearing cup with the special tools.
Remove the inner differential bearing cup with the special tool.

Fig 6: Removing Inner Differential Bearing Cup With Special Tool
Courtesy of FORD MOTOR CO.
