Differential Case and Ring Gear - Two-Piece, Conventional: Assembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position left differential case half (ring gear side) on the special tool.
    Fig 1: Positioning Left Differential Case Half (Ring Gear Side) On Special Tool
    G01551309Courtesy of FORD MOTOR CO.
  2. Lubricate the differential side gears and the differential side gear thrust washers with Premium Long-Life Grease XG-1-C or equivalent meeting Ford specification ESA-M1C75-B.
    Fig 2: Lubricating Differential Side Gears And Differential Side Gear Thrust
    G01551310Courtesy of FORD MOTOR CO.
  3. Lubricate the differential pinion gears, pinion gear thrust washers and the differential pinion shaft with Premium Long-Life Grease XG-1-C or equivalent meeting Ford specification ESA-M1C75-B.
    Fig 3: Lubricating Differential Pinion Gears, Pinion Gear Thrust Washers And Differential Pinion Shaft With Premium Long-Life Grease Xg-1-C
    G01551311Courtesy of FORD MOTOR CO.
  4. Install the left differential side gear.
    Fig 4: Installing Left Differential Side Gear
    G01551312Courtesy of FORD MOTOR CO.
  5. Install the differential pinion shaft and the differential pinion gears.

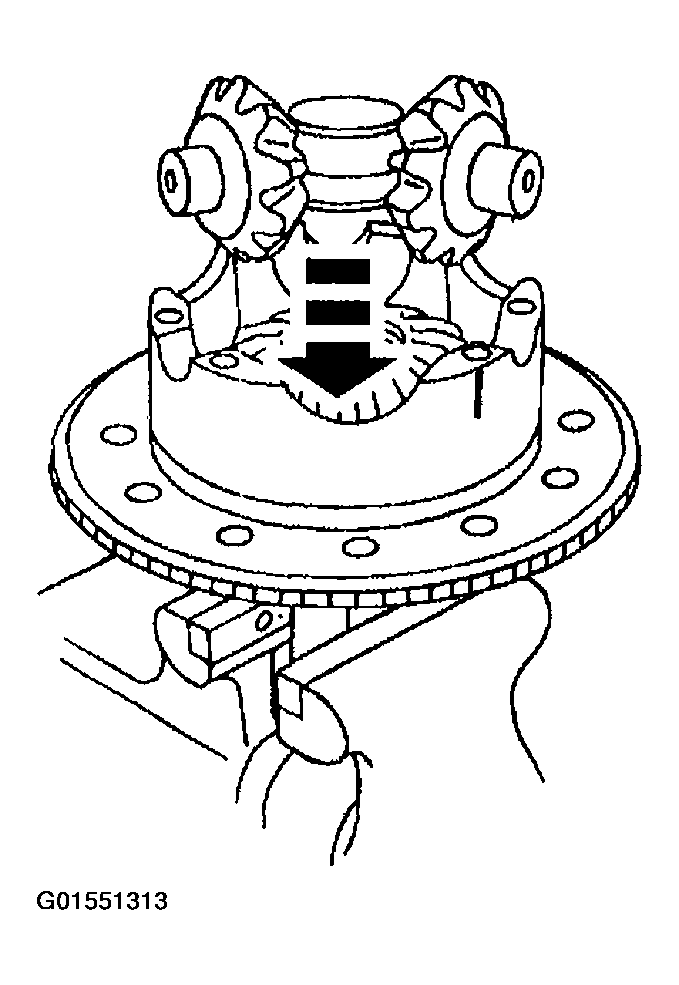

    Fig 5: Installing Differential Pinion Shaft And Differential Pinion Gears
    G01551313Courtesy of FORD MOTOR CO.
  6. Position the right differential case half with the index marks aligned.

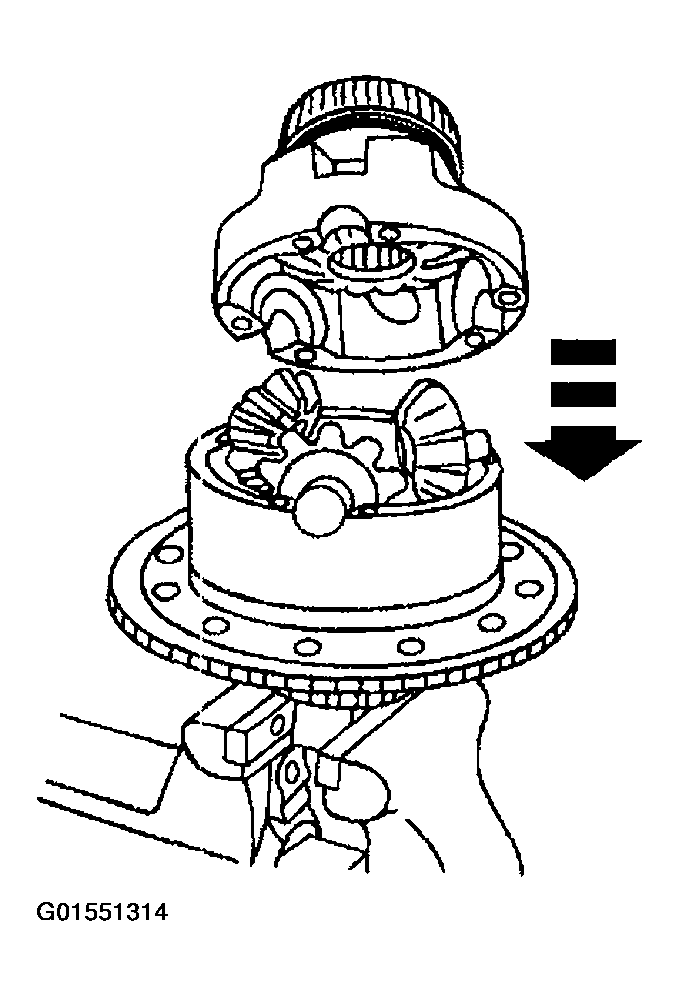

    Fig 6: Positioning Right Differential Case Half With Index Marks Aligned
    G01551314Courtesy of FORD MOTOR CO.
  7. Position the differential case retaining bolts.

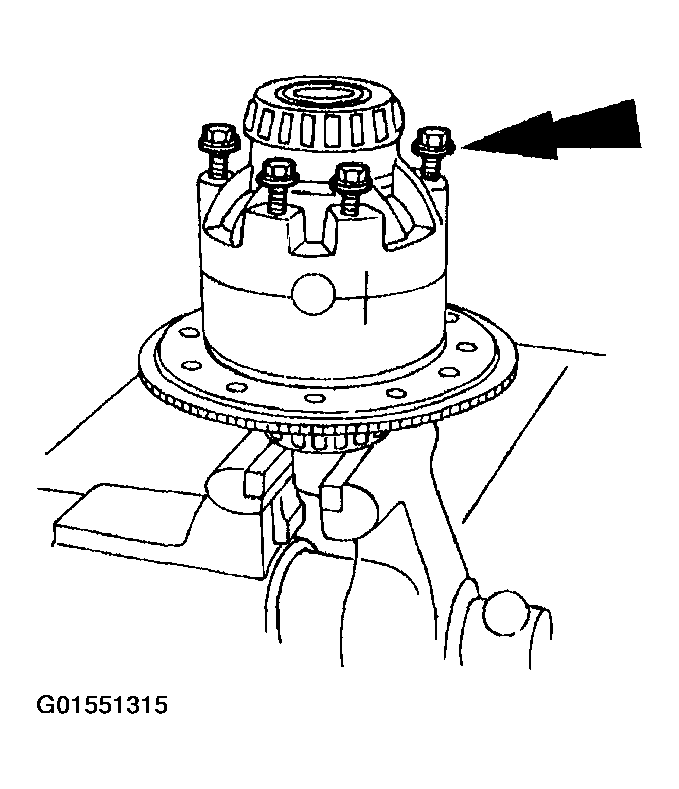

    Fig 7: Positioning Differential Case Retaining Bolts
    G01551315Courtesy of FORD MOTOR CO.
  8. NOTE: Use the special tool as shown to keep the differential case from turning.

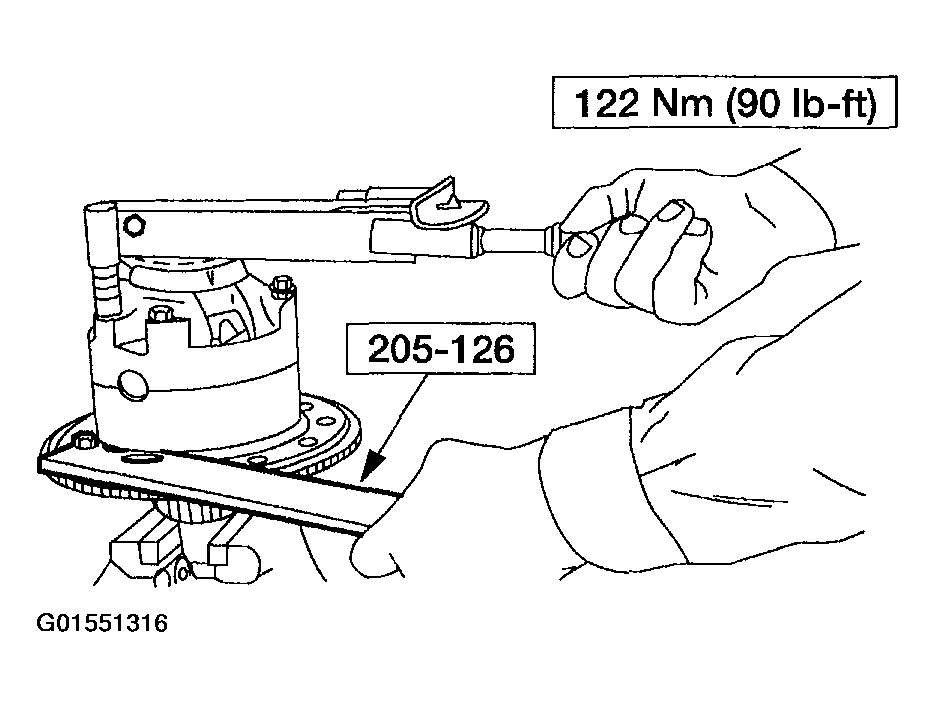

    Fig 8: Tightening Retaining Bolts
    G01551316Courtesy of FORD MOTOR CO.
  9. Tighten the retaining bolts.
  10. Press the new anti-lock speed sensor ring, if removed, and the ring gear on the differential case.

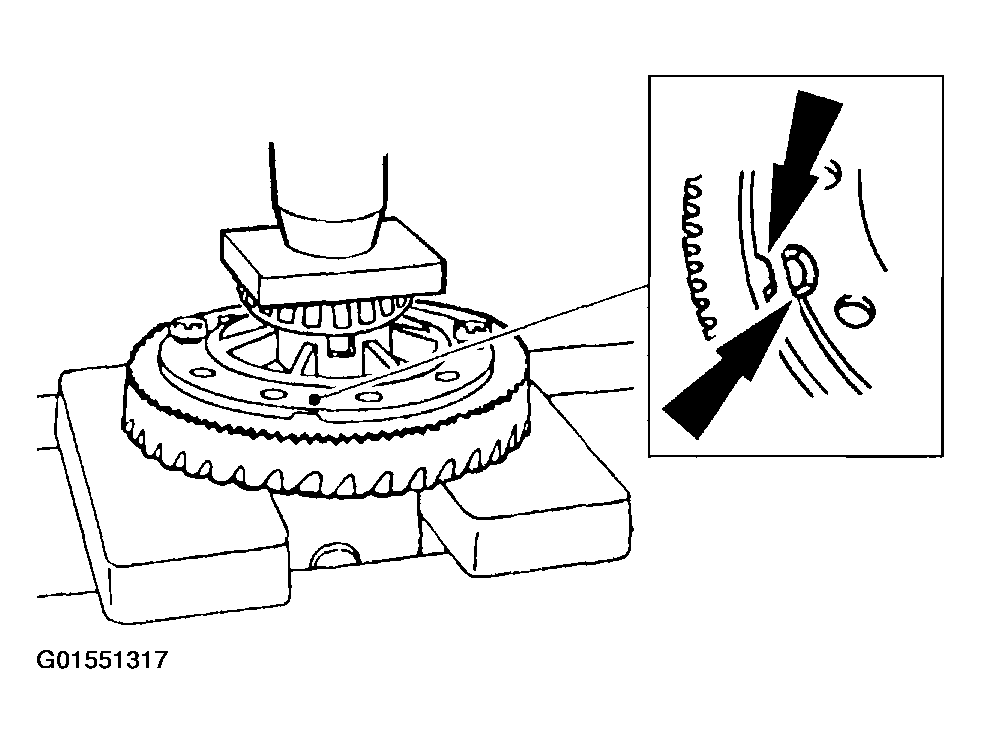

    Fig 9: Pressing Ring Gear On Differential Case
    G01551317Courtesy of FORD MOTOR CO.
  11. NOTE: Apply Stud and Bearing Mount E0AZ-19554-BA or equivalent meeting Ford specification WSK-M2G349-A1 to the ring gear bolts.

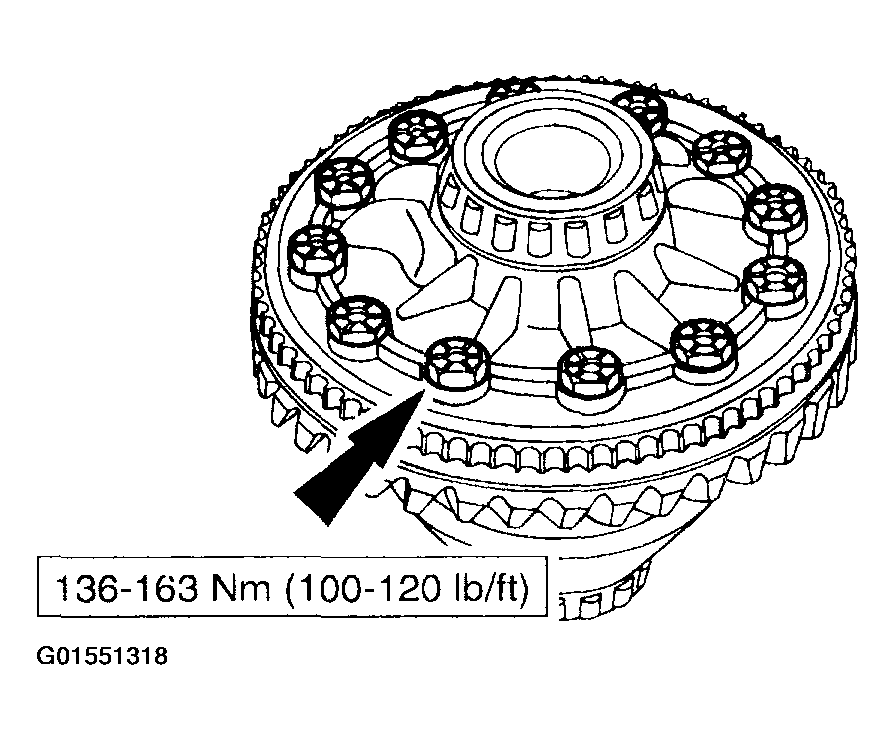

    Fig 10: Installing Ring Gear Bolt
    G01551318Courtesy of FORD MOTOR CO.
  12. Install the ring gear bolt and tighten.
  13. Install the differential case. Refer to Differential Case .
