WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

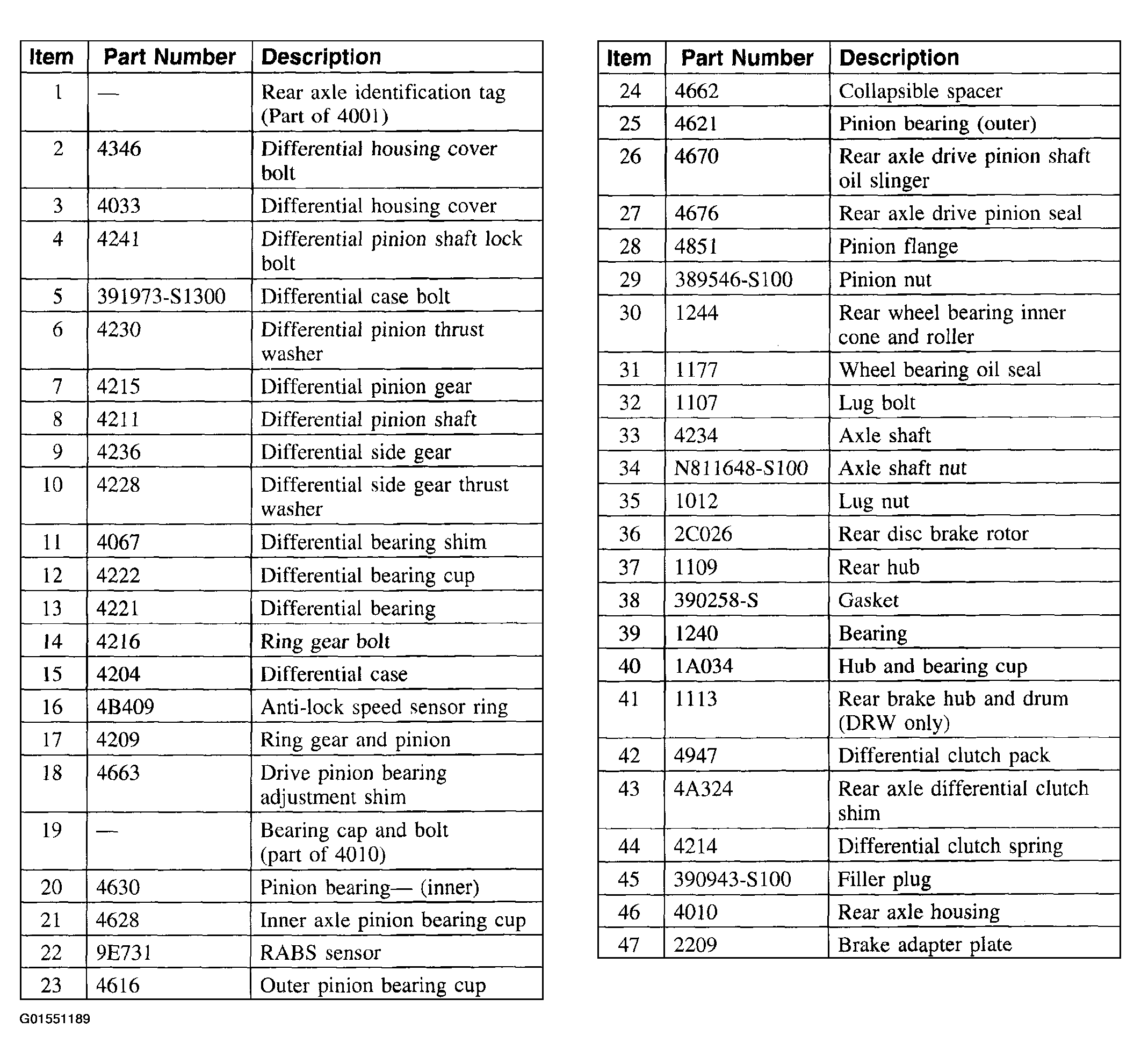

Fig 1: Identifying Rear Axle - 10.50-Inch Ring Gear, Traction-Lok® Components (1 Of 2)
Courtesy of FORD MOTOR CO.

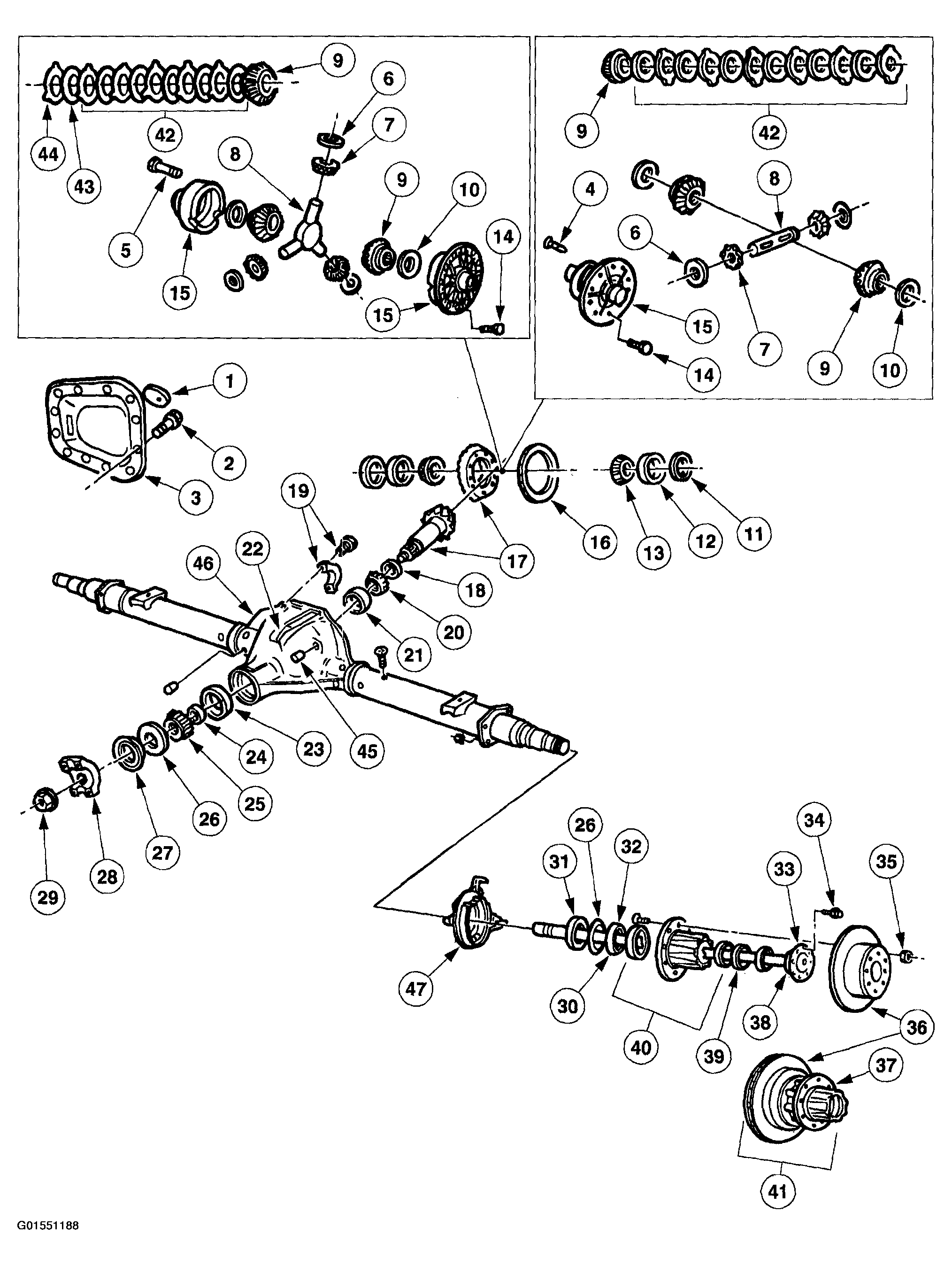

Fig 2: Identifying Rear Axle - 10.50-Inch Ring Gear, Traction-Lok® Components (2 Of 2)
