Transmission Connector Layouts: Notes

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Transmission Vehicle Harness Connector Terminals

Courtesy of FORD MOTOR CO.

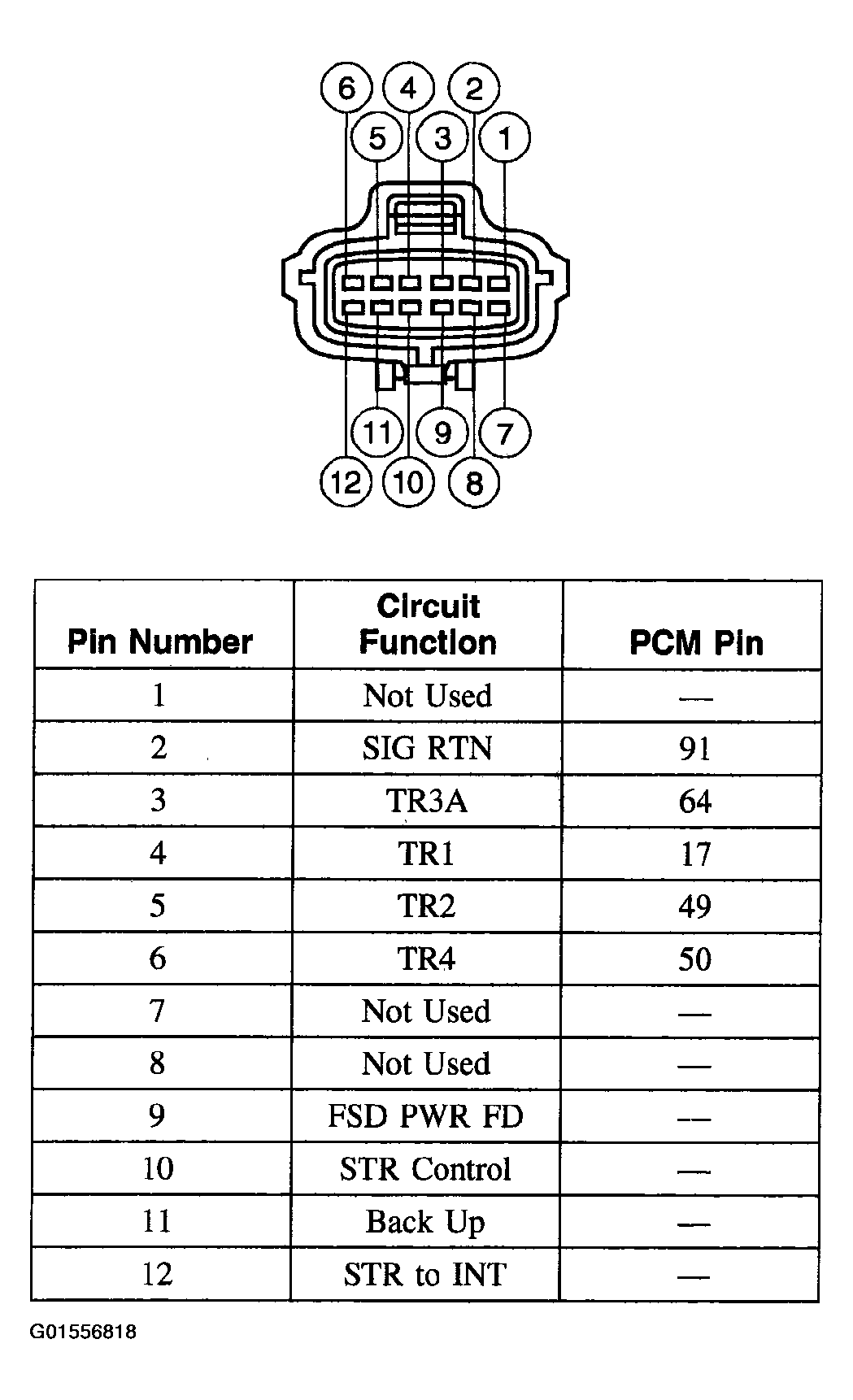

Fig 2: Identifying Digital Transmission Range (TR) Sensor Connector Terminals

Courtesy of FORD MOTOR CO.

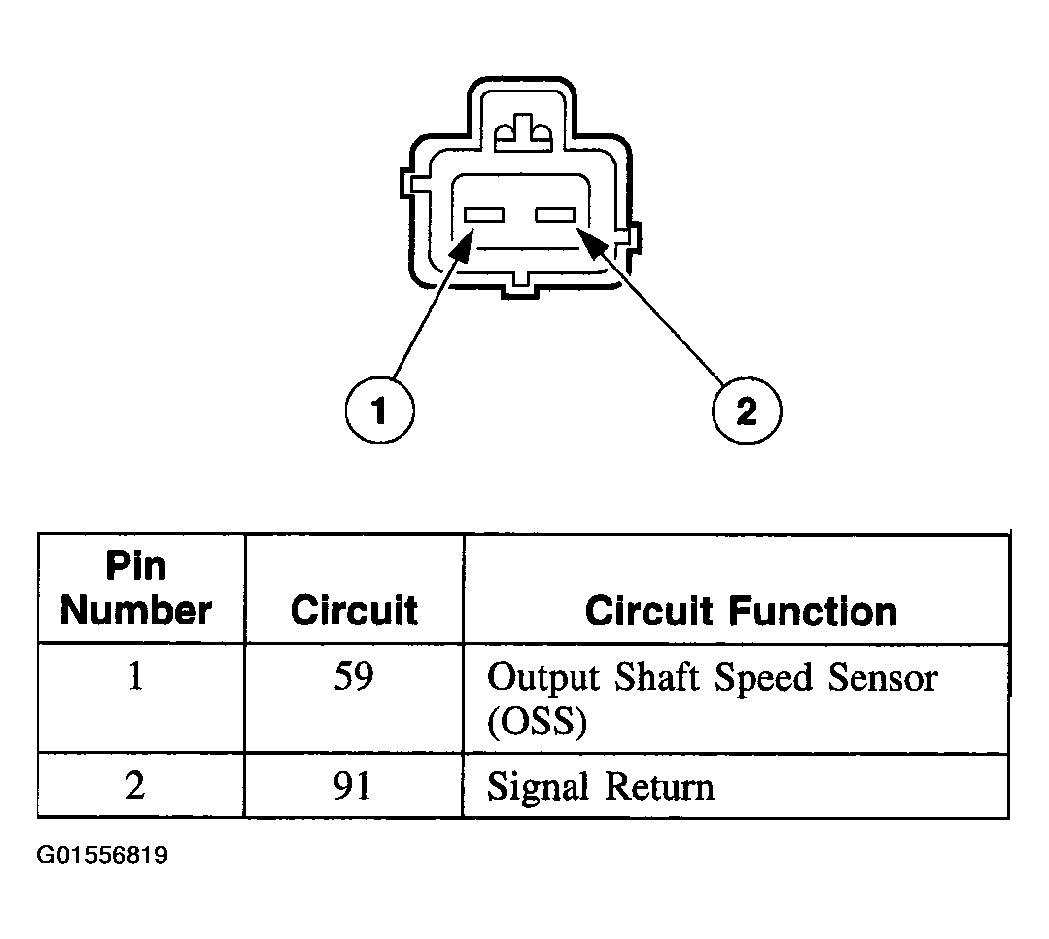

Fig 3: Identifying Output Shaft Speed (OSS) Sensor Harness Connector Terminals

Courtesy of FORD MOTOR CO.

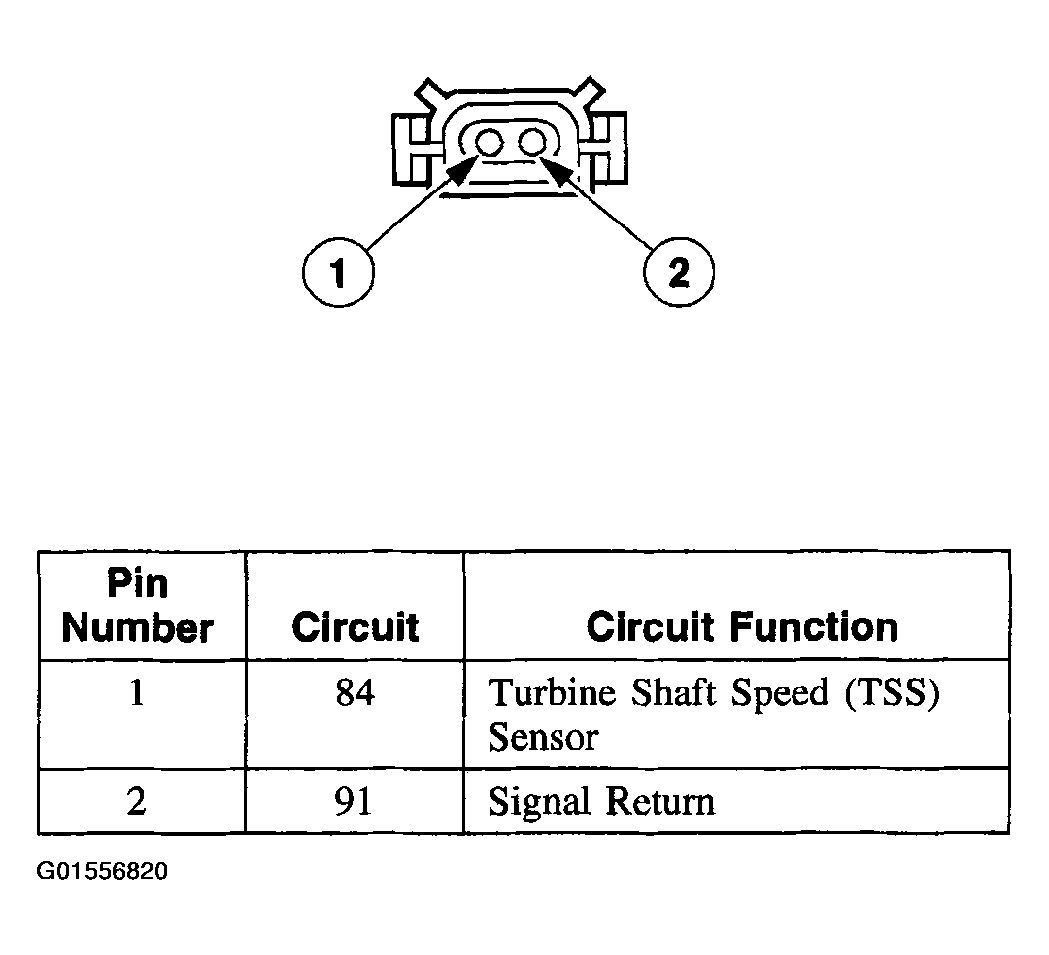

Fig 4: Identifying Turbine Shaft Speed Sensor (TSS) Harness Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 5: Digital Transmission Range (TR) Sensor Diagnosis Chart

Courtesy of FORD MOTOR CO.

TR_V is the voltage at the PCM pin 64 (TR3A Circuit) to signal return.
"In Between" reading could be caused by a shift cable or digital TR sensor misaligned or a digital TR sensor circuit failure of TR1, TR2, TR3A, or TR4.
TR_D: 1 = Open Digital TR switch, 0= Closed Digital TR switch.
Breakout Box Readings: Taken from PCM signal pins for TR1, TR2, TR3A, TR4 to signal return.
- Voltages For TR1, TR2, TR4:
- 0 = 0.0 volts.
- 1 = 9.0 - 14.0 volts.
- Voltage For TR3A:
- 0 = 0.0 volts.
- 1 = 1.3 - 1.8 volts.
- 1.8 - 5.0 volts = Invalid reading (open in wires or bad resistor in digital TR sensor).
